Welding set

EWM Phoenix XQ 500 puls DW EX R1 5 m

Used multiprocess MIG/MAG welding machine EWM Phoenix XQ 500 puls DW EX R1 5 m, MFG 2023
Multiprocess MIG/MAG pulse welding machine including all characteristics and welding processes, decompact, demodular
Drive XQ wire feeder, Drive XQ HP WRS/WHS, MFG: 2023
Pivot support for wire feeder,
“blueCool” coolant to -10 °C (-14 °F), 5 l, 5 l
Intermediate hose package, water cooled, 14-pole, 1.8 m
Welding torche PM 551 W LED X M9 3 m
Wire spool adapter B300,
MIG/MAG function torch with OLED graphic display, water-cooled, X technology, 4 m
Workpiece lead with clamp, 550 A / 60 %, 95 mm²
Pressure regulator with manometer, 30 l
Mains plug, assembled,

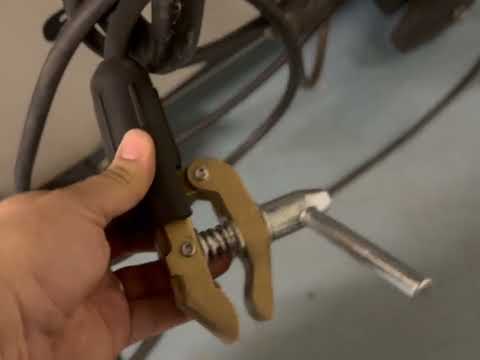

Workpiece lead with clamp: WK95mm² Ø 13 mm 550A/60% 4m/Z
Crane frame – moves the crane lifting point from the bottom to the top
Intermediate hose package, water cooled, 14-pole Cross-section: 95 mm²: Z MIG XQ 95 mm²/1.8 m 500A/80%
AK300 Wire spool adapter for use with a wire basket spool (B 300)
Setting range for welding current 5 A - 500 A
Duty cycle 40 °C 500 A / 80 % 470 A / 100 %
Open circuit voltage 82 V
Mains voltage (ex works) 3 x 380 V - 400 V
Mains voltage (possible) 3 x 440 V - 460 V
Mains voltage (possible) 3 x 480 V - 500 V
Mains tolerances (ex works) -25 % up to +20 %
Mains frequency 50 Hz / 60 Hz
Hedswgy Eyopfx Adiefb
Recommended generator power 33.2 kVA
Efficiency 90 %
Power consumption Pi 26 W
Cooling capacity at 1 l/min.1500 W
Pump pressure 3.5 bar
Tank capacity 8 l
Protection classification IP23
EMC classA
Dimensions (L x B x H) 1152 mm x 686 mm x 976 mm
Weight 125.5 kg / 276.7 lbs
Standards IEC 60974-1, -2 and -10 CL.A

Price Euro 7.500 Euro + VAT, negotiable, FCA: Oradea/Romania
Irrtum, Anderungen und Zwischenverkauf vorbehalten /
Subject to errors, changes and prior sale /
Ne rezervăm dreptul la greșeli, modificări și vânzare prealabila.
We speak English. /Wir sprechen Deutsch./ Beszélünk magyarul. /Nous parlons français/Vorbim romana
