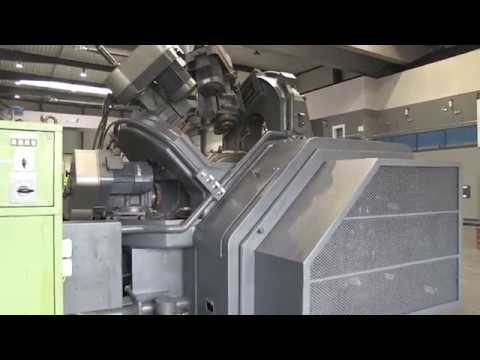

Transfer Machine

GNUTTI FMO-11S-125 RGH

Technical details:

spindle taper: 40
number of spindles: 9 Stück
weight of the machine ca.: 10,0 t
total power requirement: 13 (17,5 PS) kW
dimensions of machine: LxBxH: 4100x3400x3200 mm
dimensions electric cabinet: LxBxH: 2100x350x1900 mm

TRANSFER MACHINE DRILL AND THREADCUTTING MACHINE - ROTARY TRANSFER MACHINE with 9x Drill-& Mill Spindles

- right 2x Drill-&Mill Spindle from that 1x with U-axis flexible and 1x thread cutting unit with 9 stages flexible
- left 2x Drill-&Mill Spindle from that 1x with U-axis flexible and 1x thread cutting unit with 9 stages flexible, such as radial 2x Drill-&Mill spindle and 1x thread cutting unit 9 stages, flexible
- workpiece carrier with 8 clamping stations: workpiece holding barrel Ø 1000 mm (oil-pneumatic cycle), clamping station self-centering clamping jaws
- Drilling: SK 40 intake; spindle stroke 125 mm; standard feed rate 0 - 2 m/min; RPM at 12 stages with 164-1005 rpm
- Drill- and facing unit; SK 40 intake; spindle stroke 90 mm; standard feed rate 0 - 2 m/min; rapid traverse feed rate 7.5 m/min; RPM at 12 stages with 166 - 1020 rpm
- 3 piece thread-cutting units: SK 40 Intake; Working stroke 125 mm; RPM at 12 stages with 31.5 - 194 rpm; clockwise and counterclockwise
- 6 piece opposing drill units: SK 40 intake

Equipment:
- coolant system with feed
- operation through control panel
- chip box
- counting mechanism
- elevated platform with stairs
