Profile machining center

Kaban ZC 4035

ZC 4035 3,5 Axis Aluminum Machining Center

- Robust mechanical structure suitable for high speed
- Axis speeds with an average of 95 m/d
- Profiling length 4175 mm
- Machinable profile section size 300 x 300 mm
- Number of clamps 6 pieces
- Spindle motor 8.5 kW 24,000 rpm
- The number of magazine sets is 8
- Ø 200 mm saw- Mitsubishi PLC control unit
- Vices positioned by the X-axis
- Automatic tool recovery in case of power failure

Cjdpfx Aswfyuxsgmsgp
Design
- Mechanical structure that can process aluminum and steel profiles at high speed and high quality
- Stress relieved cast and welded parts to ensure consistent high speed accuracy
- Axis speeds with an average of 95 m/min.
- Ability to perform milling, notching, drilling, threading, countersinking, cutting, etc.
- Profile machining length 4175 mm
- Machinable profile section size 300 x 300 mm
- Automatic lubrication system
- Coolant spray system

Control Panel
- Versatile adjustable, ergonomic kiosk
- 19'' screen
- User-friendly Kaban interface with Windows-based, easily adjustable parametric structure
- Compatibility with .NCX extension software
- High performance 3 axis Mitsubishi PLC control unit- Optical communication and command increment
- Communication via Ethernet- Working with G-Code
- Data transfer via USB and COM Port

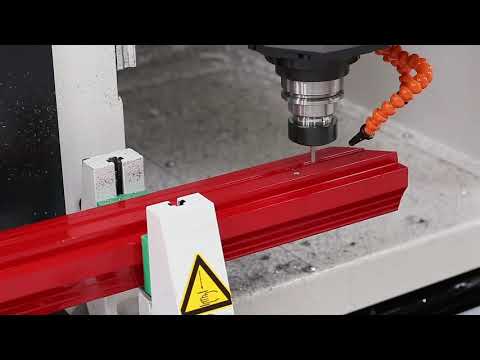

Spindle
- 8.5 kW / 24,000 rpm
- HSK F63 tool holder
- Encoder
- Temperature control
- Liquid cooling
- Tool cooling

Magazine
- 8 tool holder capacity
- Tool change in up to 8 seconds
- Ø 200 mm saw can be attached

Profile Supports
- Automatic profile support system on both sides
- Suitable for working with long profiles

Vices
- Narrow, designed vices protected against external factors
- 6 standard clamps
- Vices positioned by the X-axis
- Profile sliding comfort on the vise surface with the roller system
- Three different clamping forces according to the profile thanks to the pressure regulator

Safety
- Ability to continue from where it left off in case of power failure with the UPS system
- Auto-recovery function that sends the spindle to the safe zone
- Working safety with cover and safety barriers

Technical Support
- Periodic maintenance reminder function
- Service support with remote connection
