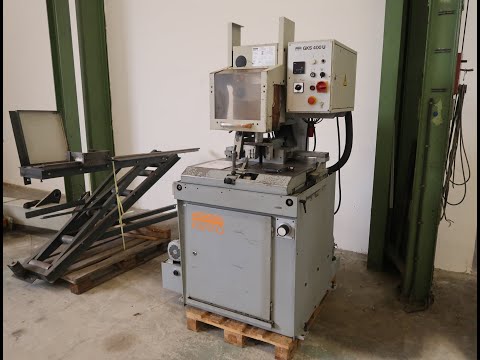

Cold Circular Saw

KASTO GKS 400 U / Halbautomat

saw blade diameter 425 mm
cutting diameter 130 / 140 mm
capacity 90 degrees: square 120 x 120 mm
capacity 90 degrees: flat 260 x 80 mm
cutting speed 11 / 22 m/min
capacity 45 degrees: flat 180 x 80 mm
capacity 45 degrees: round 130 mm
capacity 45 degrees: square 110 x 110 mm
work height max. 1050 mm
Drive 1,6 / 2,5 kW
weight of the machine ca. 1160 kg
dimensions of the machine ca. 1,25 x 1,2 x 1,9 m
Semi-automatic hydr. Miter circular saw machine with miter adjustment via
turntable, saw blade comes from below, hydr. Material clamping, stepless feed
speed, 1 horizontal vice.
Semi-automatic operation means:
1. Clamp the material, 2. Saw, 3. Saw blade return, 4. Relax the material.
Infeed roller conveyor 2000 mm and discharge roller conveyor with stop 1500 mm,
roller width 400 mm from a similar machine would be available for an additional
charge of €300. But they should be adjusted by the buyer. (see last picture).
The price is an already reduced special price.
For an additional charge at cost:
2000 mm infeed roller conveyor and 1500 mm outfeed roller conveyor with stop.
Kdodpfx Afjvmtdketow
400 mm roller width from a similar machine would be available for €300.
However, these must be customized by the buyer (see last image).
Machine dealer with own stock of 1600 m².
