Mobile exhaust system

Kiekens DMF1258M

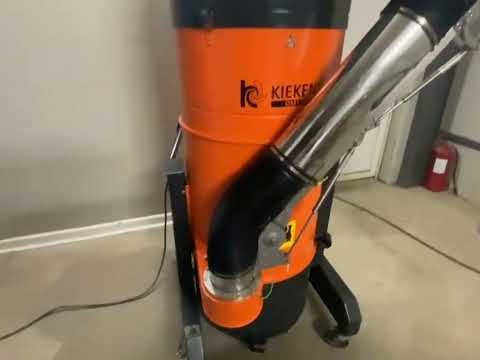

Kiekens mobile dust extractor, type: DMF1258M-B1Z22, number: DM1200000, year of construction: 2020, 400 V, 3 Ph, 50 Hz, 16 A, 2.2 kW, weight: 330 kg, dimensions: 800 mm x 950 mm x 2100 mm, serial number W20-0648-01. The dust extractor was completely cleaned and checked.
Dustmaster 1200
The Kiekens Dustmaster DM1200 series is designed to quickly and effectively extract (fine) dust.
By applying the Kiekens K-series modular concept, the Kiekens Dustmaster DM1200 series can be widely used.

The DM 1258 is designed for a variety of extraction processes, in either fixed, centralised or mobile applications, for: ƒ grinding / milling / polishing ƒ sandblasting / sanding , cutting / routing, ƒ packaging / mixing ƒ welding.
■ Extraction of powders, chips and fumes including: ƒ metals ƒ plastics / synthetics ƒ food / pharmaceutical ƒ rubber / leather ƒ wood ƒ others
■ A 2m or 3m extraction arm for variable extraction movement is optional.

Principle of operation and benefits: The dust-loaded air enters the Dustmaster through the Ø160mm inlet via a hose or extraction arm (optional upon request). o The elbow arrests dust movement, and the tangential inlet causes a cyclonic effect to enhance the separation of the dust from the air stream. p The heavier dust particles are separated from the air stream and collected in the oversized 120 litre dust container. The large volume enhances dust settlement and allows longer operations. q The air streams upwards towards the powerful 2.2 kW industrial fan, which produces high suction performance. r The lighter dust particles are collected on the large high efficiency M class 5.8 m2 envelope (or 8.8 m2 cartridge) filter, with
DM 1258M (ENVELOPE FILTER) ƒ Heavy-duty polyester needle felt (PNF) with Teflon coating, envelope-type filter design ƒ High efficiency, M class.
Motor starter with phase indication lamp ƒ Filter monitoring pressure gauge;
Filter cleaning handle for DM 1258 (motorised option available)
Gusdpfx Aievccc Is Sof
High capacity 120 litres dust container provides high dust handling capacity. ƒ
Castors for easy movement ƒ Detachable with simple release lever ƒ
Special versions for the explosion zones 2 (gas) and 22 (dust) are available. Other zones and earthed options on request.
Disposable bags can be used to line the container
For the Romanian companies, there is the possibility of financing leasing in instalments with a minimum of 40-50% down payment.
Price 4.200 Euro + VAT, negotiable, FCA: Oradea/Romania
