Spinning machine

LEIFELD PLB 300

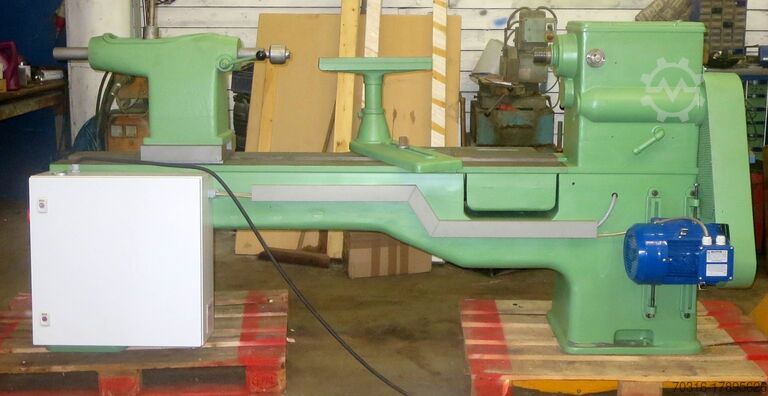

Manual spinning machine make Leifeld
Type Plb 300

License plate
Fedpfjvcfhmsx Ad Eefw

- Powerful, solid machine
- Very good technical machine condition
- All functions checked

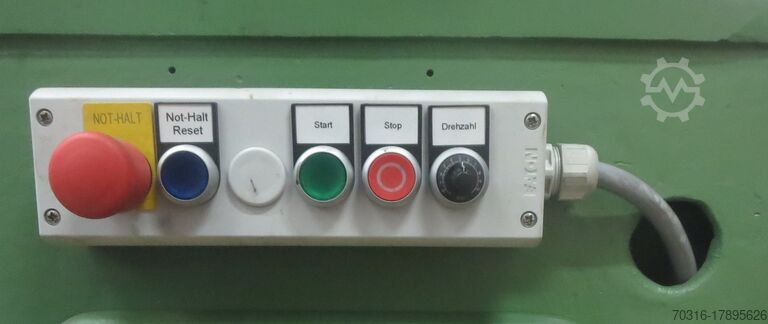

- Electrical controls and operating buttons new
- Motor and belt drive new
- New paint finish - green

Technical data

Center height mm 400
Center width mm 1400
Machine bed with offset + bridge mm 200 deep / 350 wide
Machine length mm 2400

Spindle motor kW 3
4-speed gearbox
Speeds - infinitely variable approx. 1/min 100 - 1200
Spindle holder M 64

Manual steel support - length mm 450

Tailstock - stroke mm 280
Quill - fine adjustment
Morse taper MK 3

Machine weight approx. kg 1200

Special equipment built into the machine

- Center height mm 400
- Center width mm 1400
- M-bed with crank + bridge mm 200 deep / 350 wide
- Morse taper MK 3
- Stepless spindle speeds in the indexing steps
due to frequency-controlled drive motor
- Multi-plate clutch and brake
- Hollow bored main spindle
- Electrical switching

Additional equipment - on request

- Manual cross support PS 30 / 300
- Cut-off device
