Sanding machine

Loewer Leistomat SD Video

Number of sanding units 8 st.
sanding width 180 (260) mm
Sanding height max. 160 mm
Dimensions (L/W/H) 3065x1600x1900 mm
weight of the machine ca. 1500 kg
LÖWER Leistomat SD
-----
Automatic fine grinding machine for wood grinding (smoothing, defibering and
Edge breaking) or intermediate sanding of profiled window bars. With soft disc
Technology for the visible surfaces as well as automatically safe profile and
Width adjustment.
- 2 lamella roller units on the side, each 0.75kW, L=120mm, D=200mm
1 softisc unit Ø=200mm above 0.75kW,
1 slat roller unit L=200mm top 0.75kW,
1 soft disc unit Ø=200mm bottom 0.75kW,
1 slat roller unit L=200mm bottom 0.75kW,
2 lamella roller units on the side, each 0.75kW, L=120mm, D=200mm
- Linear guidance of all grinding units
Linear ball bearing sets on hardened shafts
- time-controlled immersion of all lamella roller units
directly above the incoming workpiece edges. By the
It is possible to immerse the aggregates deeper into the profiles
to be able to deliver.
- Motorized workpiece thickness adjustment of the machine
- variable grinding flap speed via frequency converter
for adjusting the grinding intensity using frequency converters
(separate for discs, surface rollers and side rollers)
- Disc aggregates as soft discs with Velcro fastener for
Grinding wheels (wood pulp)
- Feed via three lower and one upper conveyor belts and
Spring-loaded pressure rollers with infinitely variable speed 4-15m/min
- Parameters that can be set using the touch panel are workpiece thickness,
Workpiece width (left side units individually), immersion depth
Side units, spindle speed, feed speed
- Saving the parameters as machine programs in program mode

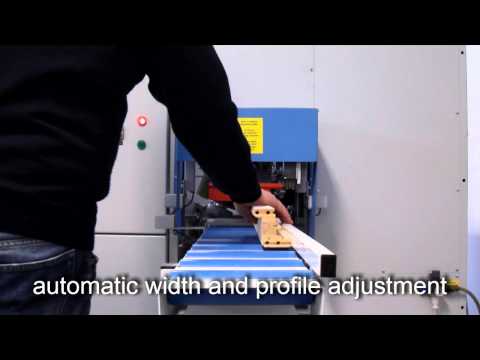

- Working in automatic mode with non-contact
Workpiece width detection and profile detection as well as automatic
Adjustment of the sanding units to the workpiece width and the
Profile shape (workpiece height is set in advance)
- pneumatically clocked driven feed roller, automatic
Clamping of the workpiece and feeding in after unit adjustment
- Red/green indicator lights to indicate operational readiness
- shortest workpiece length 380mm
- Transport belt width 200mm
- max. workpiece width 180mm (260mm in the envelope process)
- Workpiece height 12-160mm
- Suction connection 4 x 100mm and 2x80mm diameter
- Sensor-controlled tool blow-off directly on the discs
- Length (case) x width x height (mm): 3065x 1600 x 1900
Complete length: 4365mm (including roller conveyor with integrated
workpiece width detection)
- Weight: 1500kg
- Operating voltage 400V, 50Hz, 3P, air connection 6 bar
- CE version
-----
Price of the above machine on request!
-----
Special accessories with additional costs:

Set of replacement slats for Leistomat SD-200
consisting of
Area aggregates:
30 strips EH45 / 200 - 7 (rolls)
30 strips EH45 / 200 - 20 (rolls)
Codpfx Aaovnv Uho Hjhc
Folding units:
96 strips M55 / 120 - 4

SmartFlex slat disc Ø200 solid
with 30 grooves 50mm long

Set of replacement slats for SmartFlex slat disc
consisting of
60 strip M35 / 50 K 180-7 p

Sandpaper disc VB for soft disc
D=200mm grit 220
with velor backing (Velcro), pack of 100.

Sandpaper disc VB for soft disc
D=200mm grit 280
with velor backing (Velcro), pack of 100.
-----
Price of the above-mentioned special accessories on request!
-----...
