Hydraulic guillotine shear, sheet metal shear, sheet metal guillotine shear

LVD HST-C 31 / 6

Hydraulic Plate Shear LVD Type HST-C 31 / 6
Machine No. 21348 Year of manufacture: 1994
Cutting length: 3,100 mm
Cutting thickness: 6.35 mm
Backgauge: 770 mm
Working height: 950 mm
Hydraulic sheet hold-downs: 17 units
Hydraulic tank capacity: 150 liters
Motor power: 7.5 kW
Power connection: 400 Volt, 50 Hz, 9.5 kW, 19 Amp.
Pjdpfjtvb Iuox Acfogn
- Motorized backgauge with digital actual position display ELGO
- Backgauge adjustment via push button – rapid in both directions and fine adjustment by jogging in the minus direction only
- Sheet lifting device below the backgauge with pneumatic lifting cylinder
- Continuously adjustable blade gap from 0.1 mm via handwheel with analog display

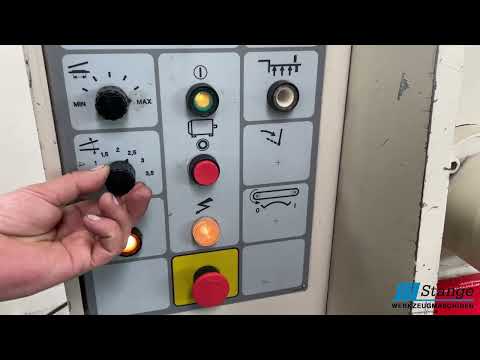

- Cutting angle adjustment in 5 steps from 1.5° to 3.5°, electrically pre-selectable
- Left side angle stop 1,500 mm
- 2 table extensions as sheet supports
- Electric foot switch
- Comprehensive operating manual
Space requirements without front table extension (L x W x H): 4,150 x 1,850 x 1,900 mm
Space requirements with front table extension (L x W x H): 4,150 x 2,850 x 1,900 mm
Weight: 5.5 tons
Good condition
Very good cutting results, including with thin sheet metal
