Band Saw

MEP - Halbautomat SHARK 332-1 SXI EVO / MDE

cutting diameter 300 mm
capacity 90 degrees: flat 330 x 260 mm
capacity 90 degrees: square 260 x 260 mm
capacity 45 degrees: flat 270 x 200 mm
capacity 45 degrees: round 260 mm
capacity 45 degrees: square 250 x 250 mm
capacity 60 degrees: flat 170 x 170 mm
capacity 60 degrees: square 170 x 170 mm
capacity 60 degrees: round 180 mm
turning speed range: 40 / 80 m/min
dimensions of saw-band 3650 x 27 x 0,9 mm
engine output 1,5 / 1,8 kW
weight 670 kg
Equipment:
- robust electro-hydraulic semi-automatic band saw (INDUSTRY)
- with miter cuts from 45° right to 60° left
* Miter adjustment via large turntable
- MEP microprocessor control EVO to control all functions
* front right, rotatable
- optional manual or automatic lowering of the saw bow
Gjdpfx Aboxaagbexjil
* stepless adjustment of the saw bow lowering
- saw band guide made of hard metal plates
- hydraulic saw band tension - including digital value display
- 2x saw band speeds
- 1x BI-metal saw band
- 1x angle stop
- chip removal brush
- machine base frame with forklift pockets
- operating instructions in German

Functioning of semi-automatic operation:
- electro-hydraulic clamping of the vice
- electro-hydraulic lowering of the saw bow
- electro-hydraulic raising of the saw bow
- electro-hydraulic opening of the vice

SPECIAL ACCESSORIES INCLUDED:

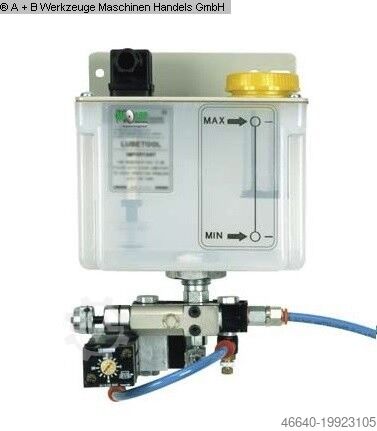

- MEP LubeCut micro dosing device
