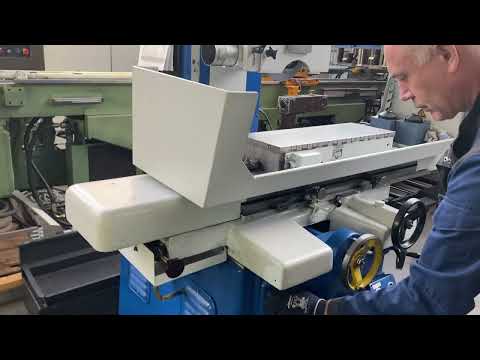

Surface Grinding Machine

Mikromat SFW 200x600

Technical details:

grinding length: 600 mm
grinding width: 200 mm
workpiece height: 400 mm
table speed: 2 - 18 m/min
magnetic plate size: 600 x 200 mm
Max. Table-movement horizontal: 700 mm
Max. Table-movement across: 230 mm
table adjustment: Quervorschub: 0,1 - 2 mm/Hub °
table speed: 2 - 18 m/min
dimensions of grinding wheel: max. Ø 200 x 20 x Ø 51 mm
grinding spindle speed: 2800 U/min
feed of spindle: vertical 0,01
total power requirement: 3,0 kW
weight of the machine ca.: 1,0 t
dimension machine xH: 1,8 x 1,2 x 1,9 m
dimension coolant device LxWxH: 0,8 x 0,4 x 0,2 m

Currently there is a grinding wheel size Ø 160 x 18mm on the machine.
Dsdpfxou Ngl Do Al Njcn
There is a dressing device (without diamond) on the spindle.
Magnetic clamping plate progress type FE 200/600; 220V / 110V
coolant tank
div. foot blocks
Toothed rail 1000mm

*
