OKAMOTO ACC42 SAIQ – CNC surface grinder

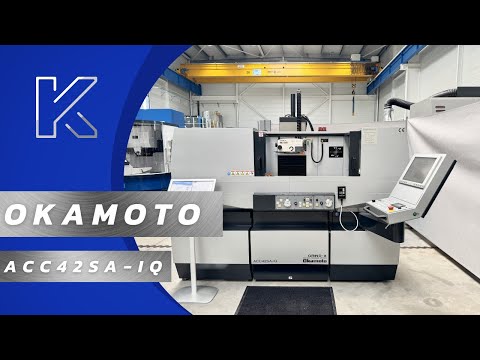

Okamoto ACC42 SA-IQ

TECHNICAL CHARACTERISTICS:

Year of manufacturing: 2017
Colour touchscreen: Yes
Maximum grinding lenght x width: 400 x 200 [mm]
Stroke X axis (table movement): 510 [mm]
Min. Stroke speed X axis: 100 [mm/min]
Max. Stroke speed X axis: 20000 [mm/min]
Dedpfx Ajw Hf Hisgmecd
Z axis travel (transverse movement): 220 [mm]
Min. distance spindle nose / table: 22.5 [mm]
Max. distance spindle nose / table: 357.5 [mm]
Max. load on table: 120 [Kg]
Grinding wheel min. speed: 1000 [rpm]
Grinding wheel max. speed: 3600 [rpm]
Grinding spindle motor power: 2.2 [kW]
Max. diameter grinding wheel: 205 [mm]
Max. grinding wheel width: 16 [mm]
Min. grinding wheel width: 6 [mm]
Grinding wheel bore: 31.75 [mm]
Number of running hours: 59 [h]
Supply voltage: 400 [V]
Total power required: 11 [kVA]
Weight : 2100 [Kg]


INCLUDED EQUIPMENT:

x1 150 [L] coolant tank FB1/R with papertape filtration unit FB1
x1 BRAILLON electro-permanent magnetic chuck type EPEFINE 2
x1 BRAILLON magnetic chuck remote control, microprocessor-based, type T10
x5 grinding wheel flanges
x1 oil chiller
x1 transformer
x2 service keys
x1 balancing shaft
x1 set of axis-brackets for transport


STANDARD CONVERSATIONAL PROGRAMMING MODE:

Straight and angular dressing (standard)
Surface grinding, multiple plunge grinding, and face grinding (standard)


INCLUDED ISO PROFILING:

Wheel profiling
Contour machining of workpiece
Full functionality for V-shape and freeform programming on the grinding wheel, and ISO contouring on the workpiece.
Precise positioning integrated: +/- 1 [μm]



Machine visible under power in our premises by appointment.

Price on request, loading on truck included.

Possibility of shipping Worldwide.
