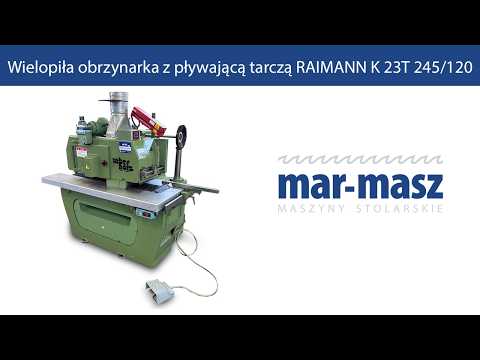

Multi-rip edger saw with floating blade

Raimann K 23T 245/120 laser

CATALOG NUMBER 7890

Technical specifications:
- Track width: 245 mm
- Shaft width for edger: 380 mm
- Shaft width for multi-blade saw: 320 mm
- Max. blade diameter: 350 mm
- Blade bore diameter for edger: 80 mm
- Blade bore diameter for multi-blade saw: 65 mm
- Max. cutting height: 120 mm
- Table width (clearance): 900 mm
- Table length: 1,780 mm

Top components:
- Pawls/kickback devices
- Smooth pressure roller
- Pawls
- Smooth pressure roller
- Short element insert
- Shaft with saw blades
- 2 smooth pressure rollers

Bottom components:
- Guide
- Pawls/kickback devices
- Track
- Centralized lubrication
- Laser
- Stepless feed speed adjustment
- Feed motor: 1.1 kW
- Main motor: 30 kW
- Manual body height adjustment
- Manual saw shaft adjustment
- Extraction outlet diameter: 210 mm
- Overall dimensions (L x W x H): 1900 x 1500 x 1800 mm
- Approximate weight: 2,000 kg

ADVANTAGES
– Made in Germany
– Stepless feed speed adjustment
– Shaft with floating blade for edging
– Sleeve for multi-blade saw included
– Laser
– Short element insert
– Used multi-blade saw, in very good condition
Iajdpfxeyitxdo Ab Ajn

Net price: PLN 55,900
Net price: EUR 13,300 (based on exchange rate of 4.2 EUR/PLN)
(Prices are subject to change depending on exchange rate fluctuations)
