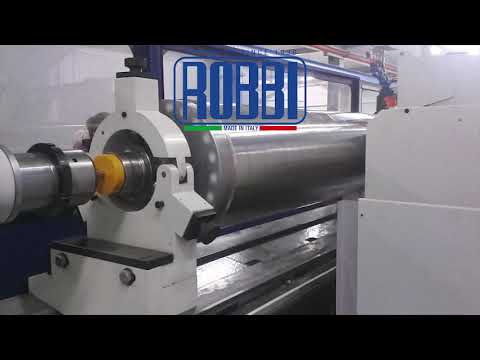

Cylindrical Grinding Machine

ROBBI OMICRON 6040 (CNC + Konv.) ,Schleif-Ø300-1000mm, Länge bis 15m!

Experience unparalleled precision and performance with ROBBI's range of cylindrical grinding machines. Our machines offer grinding lengths starting from 2000mm and are available in semi-automatic and CNC versions. With a grinding diameter range of 300-1000mm, the possibilities are endless. Partly available from stock!

Discover our extensive range of optional accessories that make our cylindrical grinding machines even more versatile. Whether it's for complex workpieces or demanding tasks, our machines always deliver the best results.

With ROBBI's years of experience, trust us to optimize your machining processes. Invest in quality and precision - contact us today!

MAIN TECHNICAL DATA: Model: Omicron CNC 80
Grinding diameter: 795/895/955 mm
Grinding length: 3000-6000 mm
Center height: 400/450/500 mm
Center distance: 3000-6000 mm
Swing over bed: 795/895/955 mm
Max. workpiece weight between centers: 4 t
Additional technical data in the appendix

MAIN TECHNICAL DATA: Model: Omicron CNC 60
Grinding diameter: 595/695 mm
Grinding length: 1000-3000 mm
Center height: 300/350 mm
Center distance: 1150-3150 mm
Swing over bed: 600/700 mm
Max. workpiece weight between centers: 1200 kg
Additional technical data available on request or in the appendix

MAIN TECHNICAL DATA: Model: Omicron CNC 36
Grinding diameter: 355/455 mm
Grinding length: 630-2030 mm
Center height: 180/230 mm
Bjdpfstximvox Aa Doct
Swing over bed: 355/455 mm
Max. workpiece weight: 250 (300 opt.) kg
Additional technical data available on request or in the appendix

ACCESSORIES (EXAMPLE FOR OMICRON CNC 80)
CNC control: Siemens 840D
Glass scales: in the X-axis
Coolant system: with coolant collection tray
Grinding wheel dresser: mounted on the tailstock (without diamond)
Telescopic cover: for the table made of fabric
Machine oil: 5l for the spindle
Frequency converter: for spindle motor and workpiece drive (stepless)
Hydraulic unit: for controlling the tailstock quill
Ball screw in the axes: X and Z

Optimized cycle with geometric and process parameters
- The CNC grinding machines meet the production requirements for medium-sized workpieces.
- The machines are equipped with the latest generation SIEMENS 840Di sl system.
- The machine can be equipped with automatic measuring systems.
- It is possible to design the grinding wheel for geometries specifically created for the required type of production.
- High-precision machining can be performed when the grinding machines are equipped with a third interpolated axis and specially designed software.

EASY PROGRAMMING
Complex programs can be created without the need for ISO programming knowledge.
The input of parameters is facilitated by a series of messages and characters that explain the meaning of the various parameters step by step.
The programming of work cycles is done by entering the same parameters of the cycle. The sequence of execution of the various cycles can be quickly and intuitively changed.

By the way, in addition to affordable new machines and tested used machines, you can expect even more from us:

• Consultation and problem-solving at your location
• Organization of machine transport to your facility
• Installation, commissioning, and turnkey delivery, and more.
