SCHELLING FH6 430 + SIRIO STORAGE

SCHELLING + SIRIO FH 6 430 + SIRIO

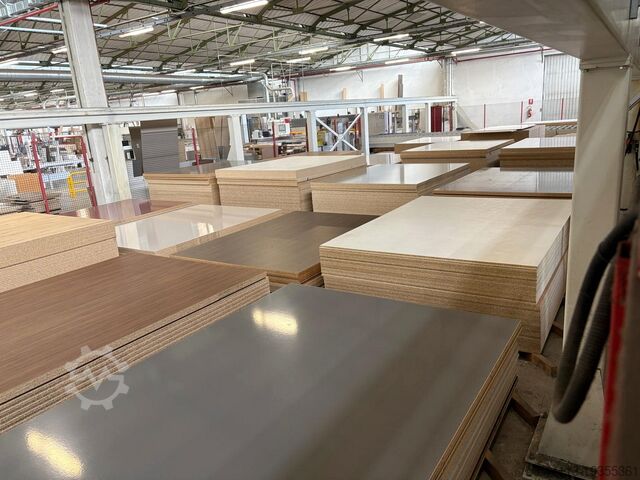

O04024) AUTOMATIC BOARD STORAGE SYSTEM for PANELS - SIRIO
Hfjdpfewrz Dbex Ad Def
Total Space Required (with panel saw) mm 10000 x mm 47000 (ca.)
Mobile upper bridge (on X-axis), with mobile carriage (on Y-axis) and relative vacuum suction cup assembly (mobile on Z-axis)
max. speed Mobile upper bridge (on X axis) 150 m/min (ca.)
moving carriage speed (on Y axis) 150 m/min (ca.)
vacuum suction cup group speed (mobile in Z axis) 60 m/min (ca.)
Vacuum suction cup group, 90° rotating
Automatic management system (by scanner) of the cut panels (but remaining in the warehouse)

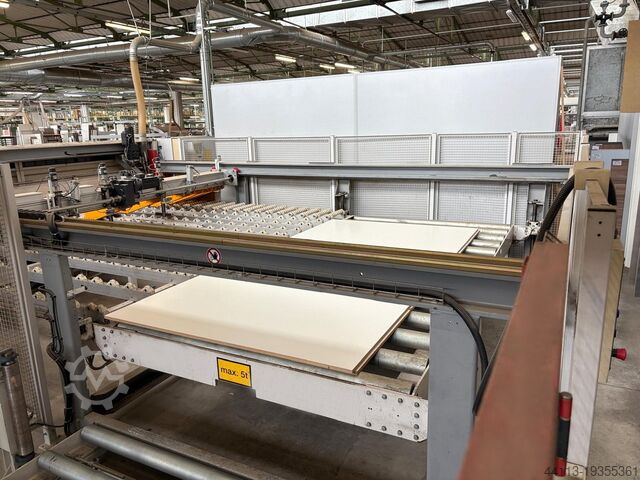

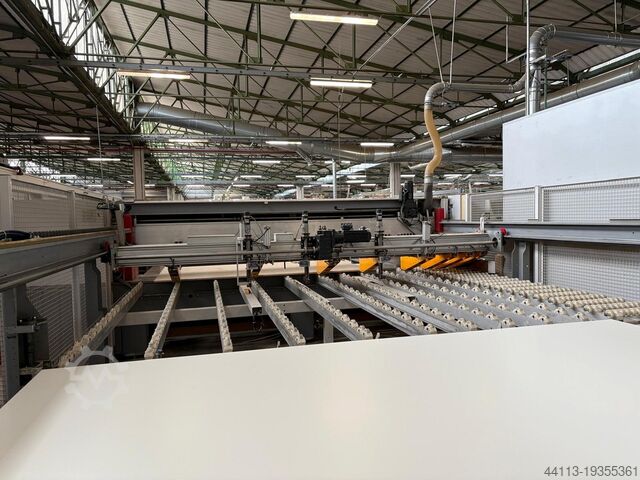

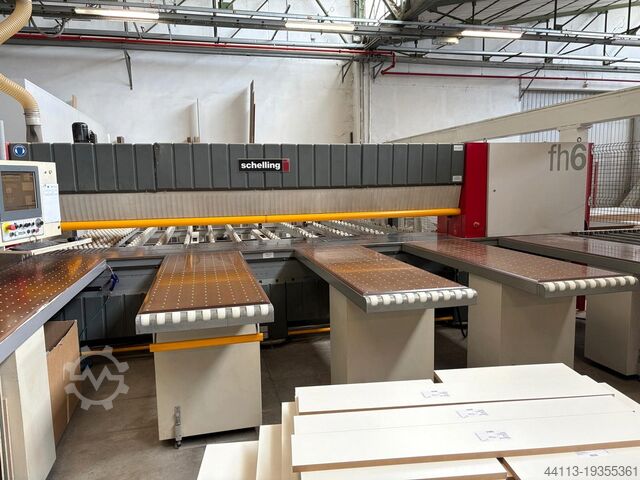

O04025) PANEL SAW WITH REAR LIFTING TABLE Mod. FH 6 430
Numerical Control MCS Evolution. Software SIEMENS WinAC RTX
Rear pushers (N.) 1
Twin Pusher - DUPLUS2. With No. 12 clamps / grippers
Max. cutting width (mm) 4300. Useful stroke of the pushing system (mm) 4300
Max. blade projection (mm) 135
Scoring Unit (max. diameter saw) mm 200
Main Sawing Unit (max. diameter saw / power) mm 460 / Kw 21
Turning device (rotating unit) at 90°
Adjustable speed of the saw carriage (m/min) 1 - 150
No. 5 Front supporting tables with Air blowing system
Total power (Kw) 33 (ca.)
