Plasma Tubecutter no tube laser pipe

Sommer Maschinenbau GmbH Rohrplasmaschneider Dragon 150

Plasma cutting machine for pipes and profiles
Plasma cutting machine for cutting pipes and profiles. The cutting contour is defined and create by the software. The created CNC code can send to the machine via USB or network. The program can be easily choose via the 12"touch display. The automatic cutting process is started after manual insertion of the workpiece.
- Tube length: max. 6000mm
- for round tube up to OD = 150mm max
- for square tube up to 101.6x101.6mm (4 "x4") max
- maximum pipe weight 150KG per load
- 4-jaw chuck
- 1x automatic raw support
- fully automatic cutting process
Iaodpjg Dvdcefx Afxsr
- PC control with 12 "touch display
- Data import via USB and network
- Power consumption: 400V 3P 2KW
- weight: 800KG
Made in Germany

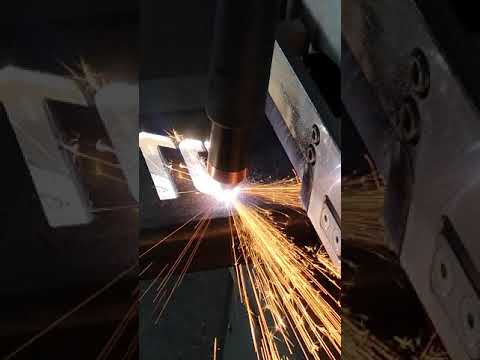

The pictures show you an older bigger machine
