Rotary transfer machine

Steinel BE 10 VK BE 10 Vk - BE 6VK

Manufacturer: Steinel
Model: 6-Station BE 10 VK, BE 6 VK
Year of manufacture: 1969
Weight: approx. 3,000 kg

General / Technical specifications:

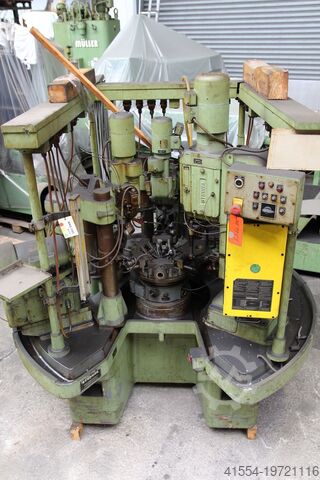

6-station rotary transfer special-purpose drilling machine for vertical and horizontal drilling in small workpieces
Drilling units: 7 pcs
Hedpsw H I R Refx Ad Djff
Station 1 – Loading and unloading
Station 2 – Vertical drilling unit, type: BE 10 VK
Station 3 – Horizontal drilling unit
Station 4 – Horizontal and vertical drilling unit, type: BE 6 VK
Station 5 – Horizontal spindle unit, type: BE VK, with additional guide. Mounting: slip bush Ø 28 mm
Station 6 – Horizontal drilling unit and vertical tapping unit, type: BE 6 VK
Feed advance for drilling units: mechanical feed via quill
Drill heads: single-spindle drilling units

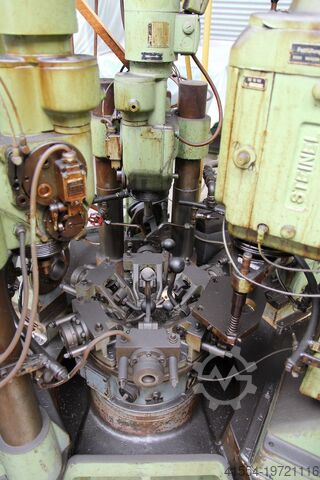

Rotary index table: mechanically indexed in 8 positions, Ø 400 mm
Workpiece clamping: manual, via collet Ø 30 mm
Machine dimensions (W x D x H): approx. Ø 1,800 mm x H = 2,200 mm
Power supply / connected load: 380V, 50 Hz

Accessories / Special equipment:
• The machine is designed for mass production use
• The machine is equipped with a robust cast iron machine table with chip disposal at the rear and a separate large coolant tank (rear outlet)
• Safety light curtain (Sick)
• Extensive accessories: spare parts, spindle units, and rotary indexing table
• The machine features a 6-station rotary indexing table
• Heavy cast iron machine table, ideal for rebuilding as a special-purpose machine
