Laser beam source

Trumpf TruDisk4002 mit KLH Kühler

Trumpf

Type: TruDisk 4002 / W20.HL29

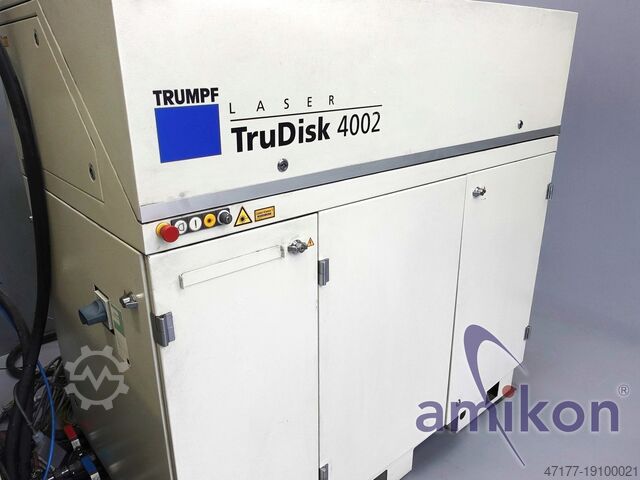

Trumpf TruDisk 4002 laser beam source with KLH cooler
The Trumpf TruDisk 4002 laser beam source is an industrial disk laser source (disk laser) from TRUMPF,
characterized by high power, beam quality, and efficiency.
It is frequently used for welding, cutting, and other material processing applications.
Maintenance has been performed regularly.
Unit consisting of a beam source with associated cooler, but without optics and fiber optic cable.
Technical Specifications
Laser power: 4,000 watts (4 kW) (minimum 80 W)
Wavelength: ~1030 nm (infrared range) (Yb:YAG)
Beam quality (BPP): typically ≤ 8 mm mrad
Fiber connection: TruDisk lasers usually have multiple fiber connections
Cooling: Water-cooled – via a KLH cooler
Dimensions: 1.0 x 2.0 x H1.6 m (laser) + 1.0 x 1.5 x 1.8 m (cooler)
380 V -10% ... 460 V +10%, 3AC + PE
23 kW / 25 kV A - 34 A / 400 V 50 ... 60 Hz
Ksdpfx Afewh Rnzetodw

KLH cooler:
The KLH cooler is an industrial liquid cooler that ensures heat dissipation
from high-performance laser systems such as the TruDisk 4002.
Typical Features:
Water-to-water cooling
Precise temperature control (typically 20–25°C)
Refrigerant: R 404A
Can be controlled via TRUMPF interface
Required to comply with laser specifications
Device Type W20.HL29
Weight: 850 kg (laser) + estimated 550 kg (cooler)
Condition: Used
Scope of delivery: (See image)
(Subject to change and errors in the technical specifications, information is subject to change!)
We are happy to answer any further questions over the phone.
