Laser punching machine

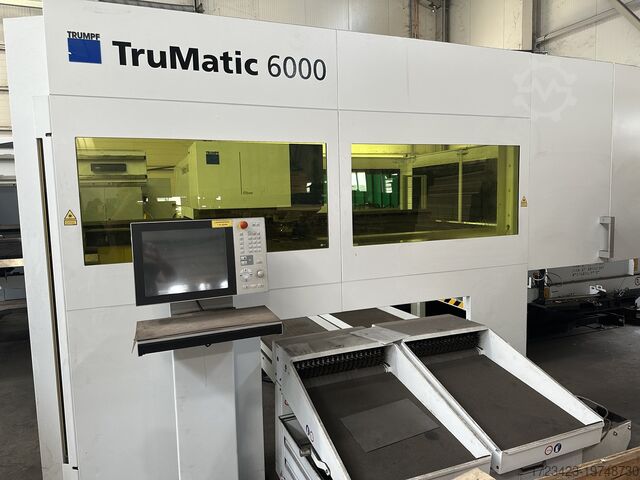

TRUMPF TruMatic 6000 Fiber

TruMatic 6000 fiber large format (K06) + SheetMaster + GripMaster + TruStore 3030 Double tower (46 Storage pallet)

Full automated high-end punch laser combination machine with with all available options!

Operating hours: 500 h (!)
Year of prod.: 06/2022

Highlited options:
Punching quality package :
• MultiShear function
• Deburring and roller technology function
• Adaptive stroke calibration
• StripLine

Forming package:
• Tapping function including forming tap breakage control
• Marking/quick beading function
• MultiBend function
• Height-adjustable clamps

Descending die
MultiTool function
Engraving function
Die spray lubrication with level monitoring
Chip conveyor with tipping container

Loading/Unloading:
SheetMaster 3000 x 1500 mm (AK04)
Loading and unloading parallel to production
Peeling unit including positioning aid for large sized sheets
Additional positioning aid for small-sized sheets
Additional positioning aids for medium-sized sheets
First additional suction package
Second additional suction package
Unloading monitoring of laser cut parts
Integrated tool changer, 40 stations

GripMaster 3000 x 1500 mm
Three scrap skeleton grippers, one of which with sensor system

Parts conveyor belt for punch and laser side
Fpodew Iz N Iepfx Ab Tsf

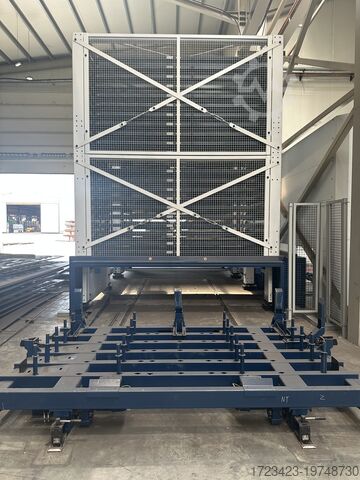

TruStore 3030 double tower storage system (46 pallet)

• Storage equipment
• Sheet size 3048 x 1524 mm
• 3 t load capacity per pallet
• Storage safety device
• Column covering
• Pallet lift (lifting chain, cable carrier)
• 19" touchscreen operating panel
• Storage interface for connecting two automation
solutions
• Instruction, documentation
• Electrical cabinet lighting
• CE marking and EC Machinery Directive
