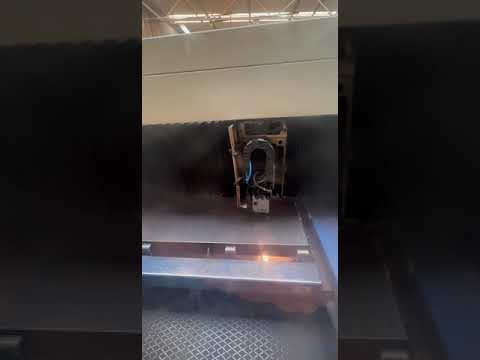

Laser cutter

Trumpf Trumatic L 3030 3200 Watt

The machine is still in operation and can be viewed at any time.

TruLaser 3030 3200 W CNC laser cutting system

X Maximum working range: 3000 mm
Y Maximum working range: 1500 mm
Z Working range max.: 115 mm

Control: Siemens Sinumerik 840D
Laser power: 3200 watts
Operating hours: 89756 hours
Laser beam on: 52259 hours

Sheet thickness St. Max.: 20 mm
Iedpfx Asv Rw Dijafobd
Sheet thickness Va. Max.: 12 mm
Sheet thickness Al. Max.: 8 mm

Standard equipment:

- Closed machine frame with integrated laser unit
- Laser unit: CO2 laser TruFlow 2000, high-frequency turbo radial blower, maintenance-free,
reflecting telescope, cooling unit, logbook function
- Automatic pallet changer
- Longitudinal conveyor for small parts/waste
- Drives: Maintenance-free three-phase servo motors
- Cutting head quick change device
- Laser cutting head with 5" lens
- Laser cutting head with 7.5" lens
- Programmable cutting gas pressure setting
Btihd7Lopy
- Control line
- Focus line
- Laser power adjustment
- Laser diode position
- Nitro line
- Sprint line
- Contour line
- Line Plasma
- Automatic detection of the outer edge of the sheet
- Programmable power cycles
- Microwelding
- Automatic shutdown
- Workplace lighting
- Workshop programming

- Safety: Multi-beam light barriers, beam guidance

fully hermetically sealed and ventilated monitoring system,
Multi-chamber extraction and compact dust extractor, protective cabin

- Network connection (RJ45) via installation via teleservice
- 3.5" diskette drive

+ TruFlow3200 flow meter
