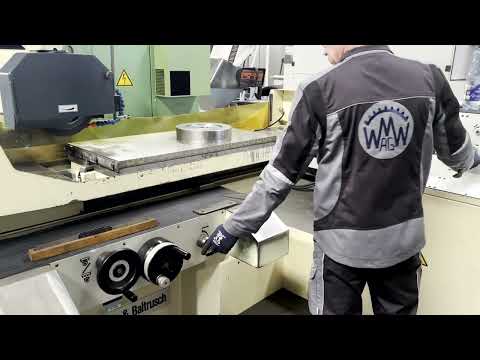

Surface Grinding Machine

ZIERSCH & BALTRUSCH FS 50100

Technical details:

grinding length: 1000 mm
grinding width: 500 mm
workpiece height: 500 mm
table surface area: 1000 x 450 mm
magnetic plate size: 1005 x 500 x 84 mm
table speed: k.A. m/min
table adjustment: längs: 1100 mm
table adjustment: quer: 500 mm
grinding spindle speed: 1420 - 2840 U/min
grinding head vertical adjustable: 700 mm
dimensions of grinding wheel: Ø 280 x 50 mm
weight of the machine ca.: 2,7 t
dimension machine xH: 3,1 x 2,0 x 2,4 m
dimension coolant device LxWxH: 3,0 x 1,1 x 0,85 m
dimensions of hydaulic: 750 x 600 x 850 mm
dimension control panel: 0,65 x 0,85 x 1,3 m

Equipment:
Dressing device
Holder for dial gauge
Coolant filter system
Hydraulic unit
Manual control unit
