Profile-grinding machine

Amada Wasino GLS 150 GL (LED) - SPECIAL GRINDER

NUMERIC CONTROL OPTICAL GRINDING MACHINE FOR WET AND DRY GRINDING
This is non standard grinding machine from AMADA (WASINO) GLS 150 G- LED.
MACHINE HAS ALL MOTORIZED AXES AND LINEAR MOTOR DRIVE.
To suit flat and rotary grinding, designed especially for tooling departments for carbide/ cermet / hardened materials grinding.
Many extras included: Vice / CBN and Diamond bond grinding wheels and grinding...

BASIC FEATURES:
- Main Spindle: 5000 rev/min.
- CNC interpolated swivel axis head
- Linear stroke, programmable (head)
- Radial / axial axis (head) controlled
- Additional axis controlled stroke (table)
- Control and extended control panel
- CCD camera measuring system
- Software packet
- External contour programming

CNC SWIVEL HEAD:
Seamless contour grinding with CNC interpolated grinding head, swiveling in the process.
Programmable swivel angle, minimizes collisions (grinding wheel to workpiece) in automatic
machining, Incl. -CNC grinding head swivel function.

- 3-axis synchronous movement for automatic 0-point centering
- Macro
- Manages up to 5 grinding wheels
- Swivel angle +/-15 °

LINEAR STROKE (head):
- Spindle stroke with linear motor, spindle position
(Grinding wheel) programmable including software
- NC controlled head axes
- Axial clearance angle
- Radial clearance angle

TABLE (hub):
- Controlled and programmable table stroke
Including software table teach in function
Extended control panel
- 15 "Touchscreen with additional keyboard (Control),
Windows operating system
Numeric control: FANUC F-32i-GT, CE certificate for Europe.

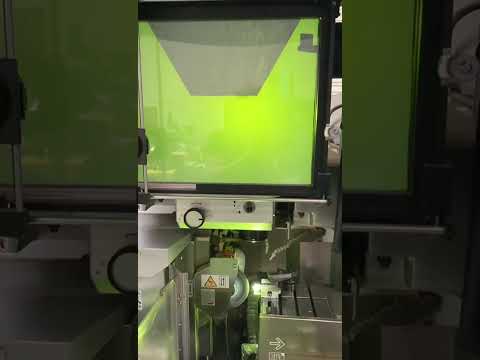

CCD CAMERAS:
- Show CAD contour (DXF)
- Enlarges the display of the projector image up to 1,000 times
- Enlarges the representation on the optical magnifying glass along the contour up to 1,000 times
- Difference measurement of the CAD contour to the workpiece after axis movement
- Including software

WinWop SOFTWARE:
- Contour programming software
Windows-based program for creating free geometries or importing from external CAD programs.
- Grinding simulation
- Compensation of profile distortions -Clearance angle
- Consideration of shrinkage on workpiece
- Adoption of value tables
- Takeover and further processing of CAD
- Data in DXF format
Ksdpfer Avaqox Aftodw
- Pre and finish grinding with Residual geometry detection (clearing-smoothing)
- External programming station

Transformer: 20 kVA, MKDG20, (3x380-400-415V/3x200V)
Spindle Chiller: Cooling aggregate for grinding spindle
Air Dehumidification Unit Incl. Air - Oil unit

Machine inspected in 06/2025 by Amada engineer (Report included)
