Welding machine

Bielomatik K3633/023 K3633 023

Here we offer you a Bielomatik laser welding system.
Bielomatik laser welding system

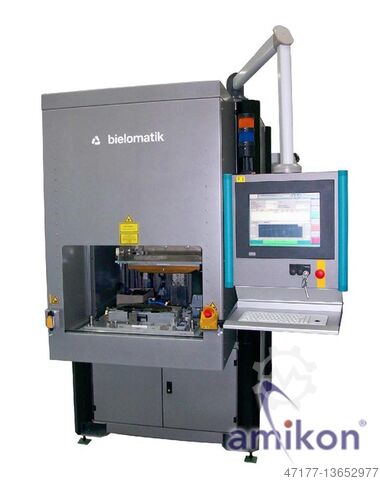

Machine description:
The laser unit with integrated cooling for the laser is located in the lower left part of the machine frame.
The tools are mounted on a 2-station rotary table, which rotates 180 degrees with each cycle.
The work area with the welding station, the tool (on the rotary table) and the hold-down device for the product is located in the middle section of the machine frame.
The control cabinet is installed at the rear.
The welding station is protected against the insertion/removal area by a laser-tight cover.
The welding laser (the laser supply) is switched off when a maintenance door is opened.
The welding parts are loaded and removed manually. The welding process runs automatically.
Laser type: YLR-300-AC-Y11/IPG
The cell was used for laser welding various plastic parts (front frame).
For components measuring approx. 460 x 280 mm
Basic data
Isdpfxjqay Uve Abgja
Equipment of the machine:
1 complete machine frame with cladding, substructure and protective devices, painted
Adjustable machine feet, designed for transportation with forklift.
3 manual maintenance doors in the laser-safe processing area, each secured with guard door switch with guard locking.
4 manual maintenance doors underneath the machine table.
The control cabinet is permanently installed at the rear of the machine Laser system Fab. IPG
1 fiber laser 300 Wcw, at the fiber end, 1070 nm completely air-cooled.
1 power supply unit for laser unit, target beam laser and glass fiber
1 Vario-Scan for 3D welding contour
1 scanner - 20 aperture
Optics, F-Teta lens, focal length determines processing field and processing distance
2x basic tool Tool coding with transponder
Hold-down/clamping system for holding a mask with absolute path measuring system
With pneumatic clamping system for path-controlled pressing of one welding part at a time
Pneumatic air shower to protect the lens body Microbox PC427B incl. RTX (Siemens)
Pre-installed Siemens S7 software PLC
Profibus, Profinet, Ehternet, RS232 interface
15" touch panel for operating and entering data/parameters Machine lighting
Connection flange for on-site fume cupboard
Machine data:
Dimensions:
Machine W x D x H: approx. 2330 x 2350 x 2500mm
Control cabinet:
Firmly bolted to the machine frame
Space requirement BF x DF: 5400 x 5400mm
Technical Data:
Power supply:
Number of phases/rated voltage 3x400V 50Hz
Connected load 5KVA
Back-up fuse: 16A
Exhaust air:
Nominal diameter ∅160
Air volume 500-1000 m³/h
Weight approx. 2000 kg
Type: K3633/023
Condition: second-hand / used
(Changes and errors in the technical data, specifications are reserved!)
