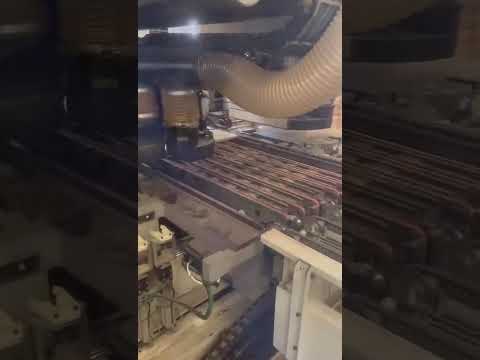

Drilling, milling and dowel insertion center

BIESSE FTT + FTT + FHT

TECHNICAL DETAILS
Components:
ESSE2 transverse loader: automatic
BIESSE FTT: with 4 heads, drilling and milling, automatic tool change
Tilting device: available
BIESSE FTT: with 2 heads, drilling and milling, automatic tool change
BIESSE FHT: horizontal drilling and dowel insertion
ESSE2 transverse unloader: automatic

Plate dimensions
Plate length: 240 - 3,200 mm
Single panel width: 140 - 1,550 mm
Plate width: 140 - 800 mm
Plate thickness: 12 - 60 mm

Drilling units
Drill heads FTT 1: 4
Drill heads FTT 2: 2
Vertical spindles (X-direction): 14 independent per head
Vertical spindles (Y-direction): 18 independent per head
Horizontal spindles (X-direction): 3 independent, with double output
Horizontal spindles (Y-direction): 3 independent, with double output

Tool change system
Revolver cartridges: 2
Positions per cassette: 56
Application: Automatic tool change of the vertical spindle centers on 4 drilling units of the two machining centers A and B

Milling spindles
Electrospindle 1: 3.7 kW (5 HP), ISO 30, with inverter and 3-way tool change rack
Electrospindle 2: 3.7 kW (5 HP), ISO 30, with inverter and 3-way tool change rack

Lateral positioning units
Workstations: 2 for parallel processing of identical or mirror-inverted panels
left positioning element: fixed for lateral reference
Right positioning element: movable in X-direction, on lower supports, linearly guided
Adjustment: automatic according to the X-dimension of the panel
Drive: Brushless with digital control
Function: Detection of the actual XLength in the machining center, automatic correction of the drilling positions
Max. travel speed: 120 m/min

Loading and unloading
Infeed system: 1 belt conveyor with cross feed, single drive
Unloading system: 1 belt conveyor with cross feed, single drive
Additional: Cleaning fan in the unloading area

Security features
Standards: CE compliant
Safety equipment: Extensive protective enclosures
