Milling and drilling

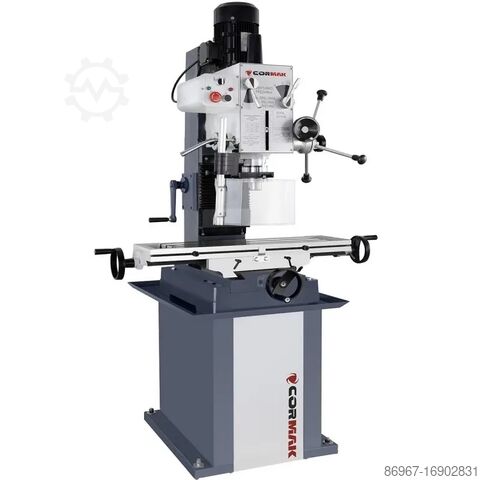

CORMAK ZX7045

The drilling and milling machine can be used for drilling, reaming and expanding holes up to 45/40 mm in cast iron and threading screws up to M12 mm, milling up to 80 mm wide, and notching up to 22 mm. It is also suitable for cutting and face milling. The machine is available from stock.

Dodpoud H Huefx Agkewc
Machine characteristics

The machine can be used for drilling, reaming and expanding holes up to 45/40 mm in cast iron and threading screws up to M12 mm, milling up to 80 mm wide, and notching up to 22 mm. It is also suitable for cutting and face milling. Various accessories can be fitted to it.

HEAVY, STABLE CAST IRON
THE HEIGHT OF THE ROUTER IS ADJUSTABLE ON THE SLIDE AND NOT ON THE COLUMN
SOLID CROSS TABLE FOR THE MILLING/DRILLING MACHINE WITH PRECISION GROUND SURFACE
DOVETAIL GUIDES,
QUIET RUNNING THANKS TO GROUND GEARS
LEFT AND RIGHT ROTATION
OPTIONAL HEAD +/- 90 degrees
ADJUSTABLE HEAD HEIGHT
Machine base available as an optional extra - 200€

Technical data

MAXIMUM DRILLING SIZE


45 mm

MAXIMUM FACE DRILLING


80 mm

MAXIMUM FACE MILLING


28 mm

MAXIMUM THREADING


12 mm

SPINDLE PASSAGE


120 mm

SPINDLE TAPER


MT4

SPINDLE SPEED (6 MOTOR SPEEDS



1400r/min )


95,170,280,540,960,1600min-1

MAX. DISTANCE FROM SPINDLE TIP TO TABLE


475 mm

DISTANCE FROM SPINDLE TO COLUMN SURFACE


260 mm

WORKING TABLE DIMENSIONS


820 x 240 mm

TABLE TRAVEL


550 x 170 mm

MOTOR


1,1kW / 1,5hp

Voltage (two options to choose from)


400V (three-phase motor)

PACKING DIMENSIONS


1140 x 800 x 1040 mm

NET WEIGHT


270 kg

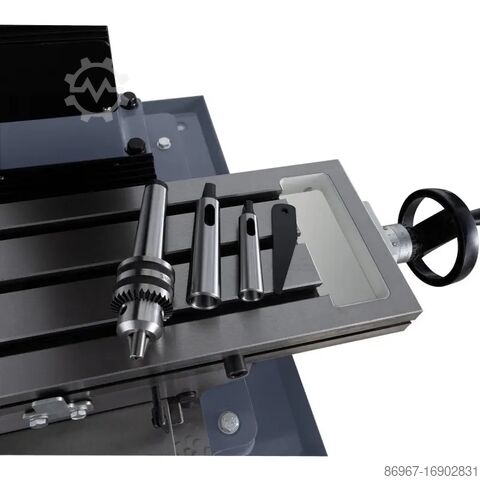

Available accessories

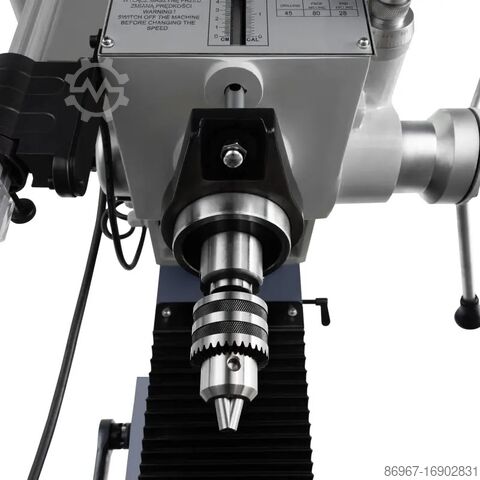

MK4/B18 drill chuck shank
handy tools
Drill chuck 3-16 mm/B18
reduction sleeve MK4/MK3
reduction sleeve MK3/MK2
instruction manual in Polish
