Laser welder

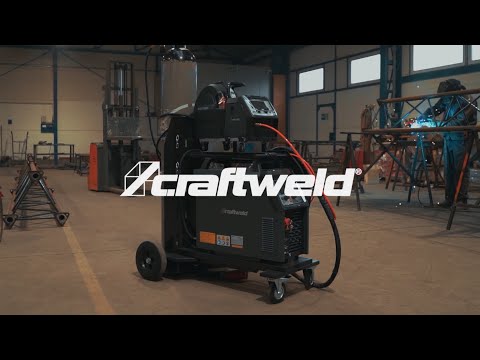

Craftweld Craft-Laser 1500 S

Operation

- Simplest operation via synergy characteristic curves
- Achieve finished welding results in just three steps. Automatic adjustment of power, wire feed, oscillation width, oscillation frequency, laser frequency, PWM, hot start, etc.
- High-resolution display ensures optimal readability of all necessary parameters. An integrated help function provides a better understanding of the adjustment options
- Fully integrated operation in the wire feed cabinet – optional operation via machine or wire feed system

Technical Features

- High-performance laser cells paired with gas-cooled torches ensure maximum power and focus stability
- 2-in-1 machine: Welding and cleaning. Laser cleaning is ideal for paint removal, rust removal, and scale removal
- Optional: Dual wire feed

Safety

- Two-channel emergency stop system
- Two-channel safety interface for access control (door contact switch)
- Key switch to prevent unauthorized use
- Two-channel fiber break detection as well as monitored QBH connection
- Safety notices and manual activation of laser release at every start
- Dual-action button prevents unintentional activation of the laser
- Suitable for heavy-duty applications

Advantages of Laser Welding Compared to Conventional Welding Methods

- Minimal distortion, extremely fast, outstanding quality (even with very thin materials < 1 mm)
- Consumes approximately 70% less energy
- Quick and easy to learn
- High process reliability
- Extreme time savings with significantly reduced rework
- One of the lightest torches on the market, weighing approx. 680 g
- Two-channel safety circuit for maximum safety

Advantages of Craft-Laser

Bjdjyuvktspfx Adgedd
- Laser cleaning with up to 100 mm scanning width and autofocus
- 2-in-1 machine: welding and cleaning
- Full synergy – no more parameter lists
- Service-friendly – no more inconvenient shipping required
