Motorized length stop

Diethei PD 50e für normale Lasten

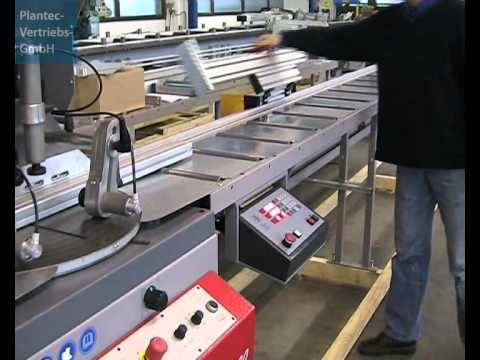

The PD 50 e length stop with servo motor drive has a modern control positioning device that ensures that the carriage holds the material in the desired position even under load. The control provides information in three display fields about the actual value, the target value and the number of pieces to be processed (option). Motorized retraction of the carriage is possible. Existing machines / roller conveyors can be retrofitted at any time.

Product Details:
• Positioning control for automatic positioning
• Possibility of positioning according to absolute or incremental dimensions
• easy-to-read LED display for nominal size, actual size and quantity (option)
• Carriage with DC servo motor and encoder
• Carriage with multiple ball bearings
Codefv T Dwspfx Agmjpw
• Control positioning device
• Positioning accuracy 0.1 mm/m
• Motorized clearance function
• Steel guide rail with precision rack
• Multi-adjustable stop arm
• Standard measurement lengths: 1m to 6m, maximum up to 20m
• Total length of the system = measuring length + 0.5 m
• Left or right hand versions available
• Accesories:
-Stop arm with spring damping
-Arm retraction with impact damping via pneumatic cylinder
-Piece counter for number of pieces/cuts made
-programmable NC control with 3000 memory locations
-Different material roller conveyors (e.g. roller conveyor width 290 mm or 407 mm etc.)

It is always possible for you to inspect the desired system in our production/demonstration hall.
Please do not hesitate to contact us.
