Press brake WITH BENDING AID

DURMA AD-S 30175

Manufacturer: DURMA
Model: AD-S 30175
Year of manufacture: 2020*
Bending length: 3050 mm
Press force: 1750 kN

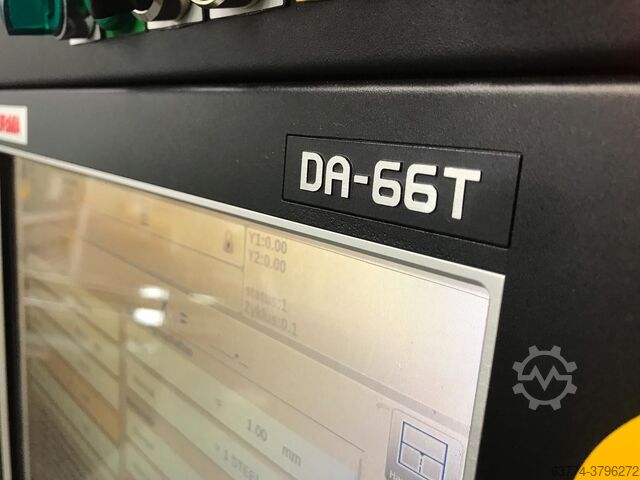

Control system: DELEM DA-66T
Operating hours: 32 h

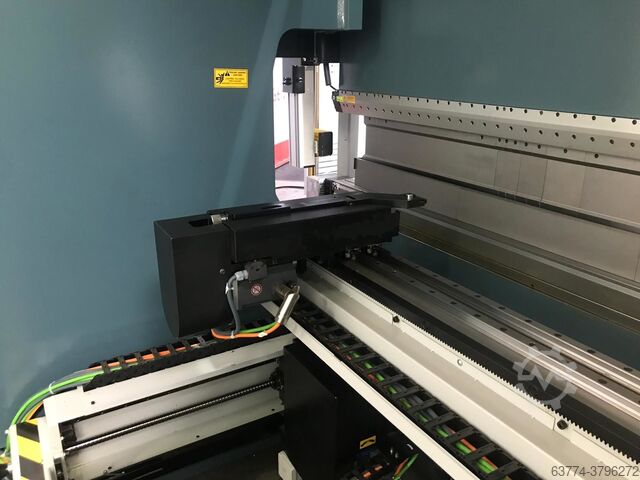

Controlled axes, back gauge: X, R, Z1, Z2, +Delta X +/- 125 mm, CNC-controlled
Distance between uprights: 2600 mm
Lajdpfx Afjdx Nlujtsc
Stroke length: 265 mm
Installation height: 530 mm
Table width: 104 mm
Table height: 900 mm
Upright overhang: 410 mm
Travel range, X-axis: 650 mm
Travel speed, X-axis: 500 mm/s
Travel range, R-axis: 250 mm
Approach speed: 160 mm/s
Bending speed: 10 mm/s
Retraction speed: 100 mm/s
Dimensions L/W/H: approx. 4250x1700x2750 mm
Weight: approx. 11500 kg

Standard equipment
Y1, Y2, X, R – X = 650 mm
Control system: CNC Cybelec ModEva 19T – PC 1200 3D SW
D-BEND 3D CAD/CAM import & simulation program
CNC-controlled motorized crowning
European tool clamping system
60 mm die holder (for European die system only)
Overhang 410 mm
2 front-adjustable support arms with T-slot and tilting stop
Back gauge system: Siemens DC servo motor with linear guide and ball screw spindle
Protective covers
CE marking

Additional equipment

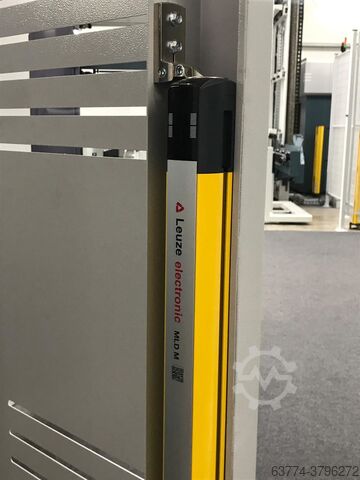

Safety system, CE standard for EU: FIESSLER AKAS-3P motorized + FPSC (SAFETY PLC)
Controlled axes, back gauge: X, R, Z1, Z2, +Delta X +/- 125 mm, CNC-controlled
Control system: DELEM DA-66T
Hydraulic upper tool clamping system Wila NSCL-II-HC/UPB – PREMIUM – 250 t/m
Hydraulic lower tool clamping system Wila NSCR-II-HC-CNC/UPB – PREMIUM – 300 t/m
Power pack for hydraulic clamping
AP3-AP4 bending aid - motorized height adjustment - max. load capacity 125 kg per piece
Oil cooler

This machine is manufactured according to customer requirements.

Further machines are available for demonstration at our location in Staufenberg.

Upon request, we will gladly provide you with further information.
