SPECIAL ACTION Pressbrake

DURMA AD-S 30175

Machine dimensions:
• (L x W x H): 4,250 mm x 1,700 mm x 2,750 mm

Technical data:
Bending length: 3,050 mm
Free stand clearance: 2,600 mm
Control system: CNC ModEva 19T
Controlled axes, back gauge: X, R (Z, optional)
Stroke length: 265 mm
Installation height: 530 mm
Table width: 104 mm
Table height: 900 mm
Stand overhang: 410 mm
Travel range X-axis: 650 mm
Travel speed: X-axis: 500 mm/s
Approach speed (Y): 160 mm/s
Bending speed (Y): 10 mm/s
Working speed (R): 350 mm/s
Travel range R-axis: 250 mm
Bedpfxodx Nm Tj Accswu
Hydraulic oil volume: 200 l
Motor power: 18.5 kW
Weight: approx. 10,500 kg

Standard equipment:
Control system: Cybelec ModEva 19T
CNC-controlled crowning
Clamping system, top: Durma (European)
Clamping system, bottom: 60 mm - holder
Back gauge: AC servo motors with ball screw

Options include:
Fiesseler safety system AKAS II - FPSC-B-C
Top tool, bent: P97.75.R08 (one with a split)
Bottom tool, multi-die (die widths 16/22/35/50 mm)

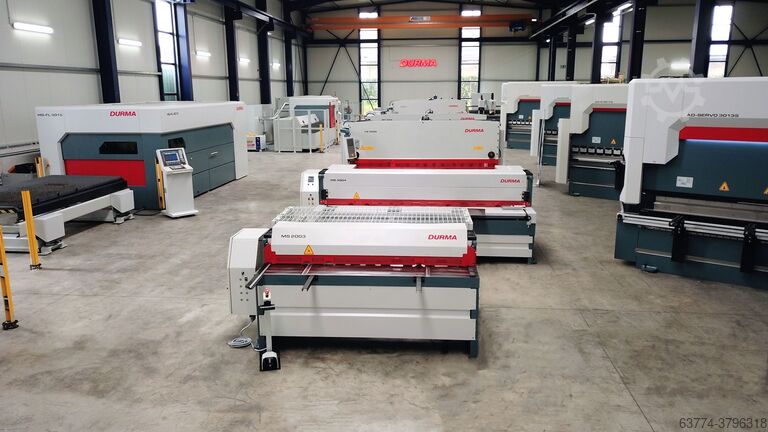

The machine can be inspected and demonstrated at our showroom in Staufenberg at any time by appointment.

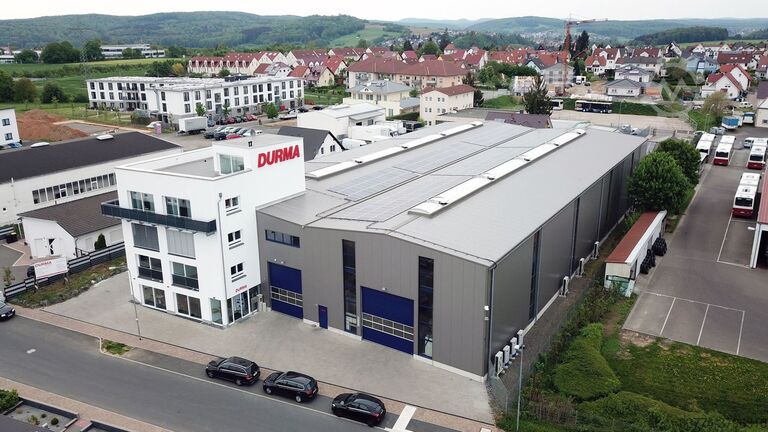

Other machines are available for demonstration at our facility in Staufenberg.

Upon request, we will be happy to provide you with further information.
