Hydr. pressbrake

ERMAK POWER BEND PRO 20.60

pressure 60.0 t
chamfer lenght 2100 mm
distance between columns 1700 mm
column arm 410 mm
ram stroke speed 160 mm/sec
work speed 10.0 mm/sec
return speed 165 mm/sec
work stroke 275 mm
dayligth 530 mm
table height 900 mm
table width 90.0 mm
oil volume 150 ltr.
voltage 400 Volt
total power requirement 7.5 kW
weight 5640 kg
range L-W-H 3250 x 1960 x 2750 mm

-----
Fsdpfx Aexabcksfzopb
Press brake with special equipment
* increased installation height
* increased cylinder stroke
* as well as increased bending beam speeds
-----

Furnishing:
- DELEM CNC control model DA 53T (touchscreen)
- Motorized backgauge with R-axis, on recirculating ball spindles
- X = 800 mm R = 250 mm with 2 stop fingers
- controlled axes Y1 - Y2 - X - R - C (crowning)
- electr. Crowning controlled by CNC

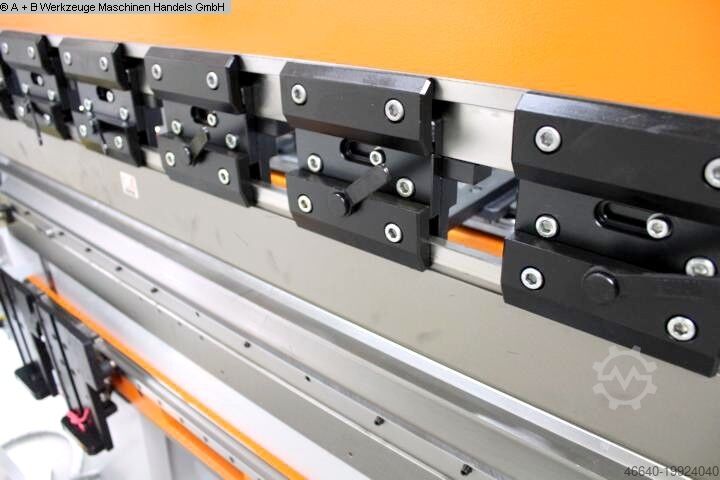

- Upper deer foot tool with PS 135.85-R08, system "A" with quick-change clamp
- Additional crowning device in the tool holder of the upper tool
- 4V universal die block M 460 R with die shoe 60 mm holder
- BOSCH / HOERBIGER hydr. Components
- SIEMENS electrical system
- LEUZE light barrier behind the machine

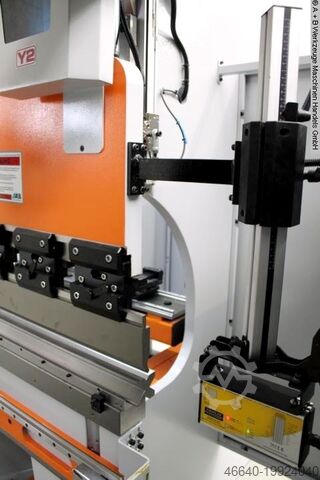

- FIESSLER AKAS laser with FPSC protective device v.d. machine
- Swiveling control panel, mounted on the left
- 2x front support arms "sliding system", with T-slot and tilting cam
- 1x double foot control
- CE mark / declaration of conformity
- User manual: machine and control in German
- Safety manual: press brakes
