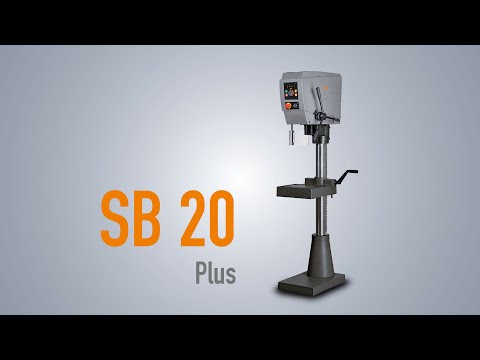

Column drilling machine

FLOTT SB 20 Plus (NEU ab Werk)

Continuous/standard drilling capacity (mm): 20/23 (in E335/ST60)
Tapping capacity (thread pitch dependent): M12
Spindle: MK II
Spindle speed (stepless): 40–4000 rpm
Drilling depth (mm): 100
Throat depth (mm): 240
Column diameter (mm): 82
Usable work surface (W x L) (mm): 340 x 280
T-slot size (arm), spacing (mm), width (mm): Number: 2, 125, 13/26
Speed display: Digital
Drill depth display: Digital
Drill depth stop: quickly adjustable stop ring
Feed (mm/rev): manual
Table height adjustment with rack and pinion
Three-phase motor 400V with frequency inverter (kW): 1.5
Spindle/work surface distance (mm): 160 – 880
Machine dimensions without packaging (mm): 355 x 705 x 1825
Machine dimensions with packaging (mm): 572 x 936 x 2142
Weight (kg): 195

Standard accessories:
Thread cutting device
Control panel with OLED display
Robust, high-quality drill head cover with ergonomically inclined front
LED lighting
Quick-adjust, ergonomic drill depth stop
Stepless speed control via central rotary knob
Emergency stop button
Thermal overload protection
Spindle stop
Drill guard with electric interlock
Connection cable with CEE plug
Nwodpoir Ir Tofx Abnep
3-year warranty for single-shift operation
Delivery free to site
