Swarf Conveyor

GERD WOLFF Maßanfertigung

Please complete the attached form and return it to us by email for quotation preparation.

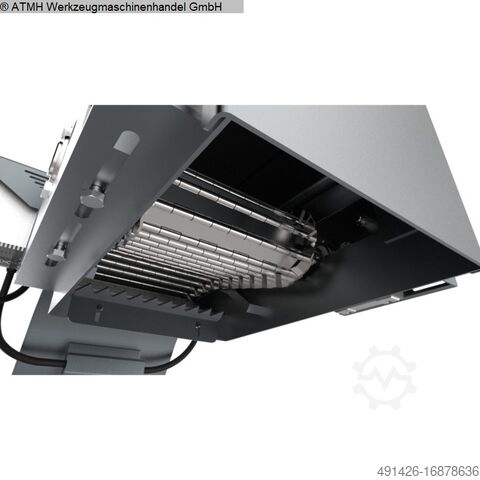

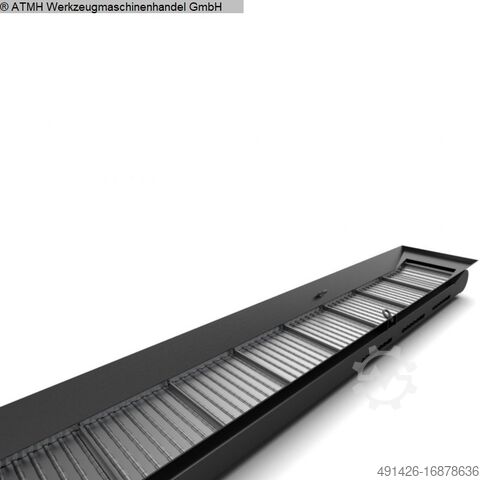

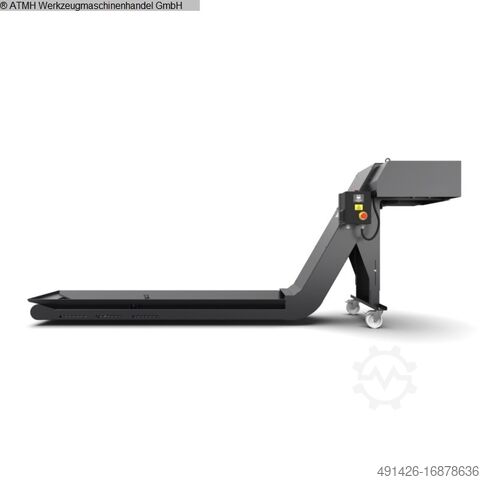

Hinged Belt Conveyors – Overview & Features


General

- Hinged belt conveyors can be manufactured according to purpose and dimensions.

- The design and belt system are robust and durable, provided regular maintenance is carried out.

- Most commonly used type of chip conveyor.


Applications

Transport of:

- Long, coarse, corrugated, and crumbly chips

- Materials such as transmission steel, tool steel, aluminum alloys, Teflon, Delrin, etc.

- Designed for conveying chips from the production process.

- Separation of cutting oil/coolant from the chips.


Versions

- Available with or without a tank for returning cutting oil/coolant to the system.

- Four standard chain pitches: 31.75 mm, 38.10 mm, 50.80 mm, 63.50 mm.

- Chain pitch selected according to the amount of chips to be conveyed.

- Conveyor width, length, motor, and gearbox are matched to the hourly conveying capacity.

- Coolant recycling is taken into account during the design.


Control

- Operation via control panel or CNC control of the machine tool.
Ihodpfeuddbpex Adijt

- Control via plug-in connection possible.


Note: Images are for reference only and are not to scale.
