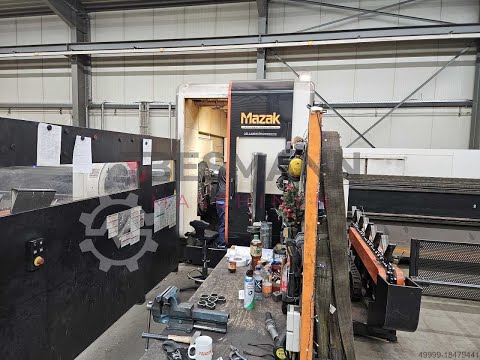

Laser cutting machine

Mazak Fabri Gear 400 MK II

The plant was commissioned in 2014!

TECHNICAL DETAILS
Travel X: 8,750 mm
Y travel: 1,270 mm
Z travel: 370 mm
Travel U: 9,300 mm
Travel V: 2,515 mm
A-axis: nx 360°
B-axis: ±135°
Control: Mazak FX CNC control

Laser
Type: YB-L40 C10T01
Laser power: 4 kW

cutting head
Type: 3D cutting head for pipes, profiles and free-form parts
lens: 8.5”
Consumption: 15 l/h

material & cutting capacity
table load: 480 kg
Max. workpiece length: 8,000 mm
Max. diameter of round tube: 406.4 mm
Max. diameter of square tube: 300 x 300 mm
Max. diameter of double T-beam / H-beam: 300 mm
Max. diameter L-beam: 254 x 254 mm
Cutting performance (90° cut) structural steel: up to 20 mm
Cutting performance (90° cut)stainless steel: up to 10 mm
Cutting performance (90° cut)Aluminium: up to 8 mm

loading and unloading system
Length of loading and unloading: 8 m (for profiles/pipes up to 8 m)
Unloading axis stroke X/Y/Z/A: 925 mm
Unloading axis stroke U/V/W/B: 326 mm

rapid traverses
Rapid traverse X, U, V: 30 m/min
Rapid traverse Y, Z: 24 m/min
Rapid traverse A, B: 9,600 °/min
Rapid traverse C: 6,000 °/min

MACHINE DETAILS
Operating hours: 29,585 h
Dimensions: 21,832 x 6,922 x 2,664 mm
Installation dimensions: 22,109 x 7,215 x 3,204 mm
Weight: 36,500 kg
Connected load: 87 kVA

EQUIPMENT
- Powerful 4 kW laser for precise pipe and profile processing.
- 3D cutting head for versatile applications (pipes, profiles, free-form parts).
- Preparation for suction
- suction
- Touch Sensor
- Weld seam detection
- H200 equipment
- Automatic pipe l
