Gas Rotary Bakery Oven MF Techno 2.0

Mondial Forni Techno 2.0 GAS

Available models on GAS and Electrical power supply with different dimensions and capacities
Perfect for artisanal bakeries, semi-industrial plants and retail stores

The ideal solution for anyone looking for superior baking performance and maximum flexibility when working with different types of bread and pastries, regardless of shape, size or quantity. It burns perfectly at both full and partial loads.

Innovative baking systems for perfect results

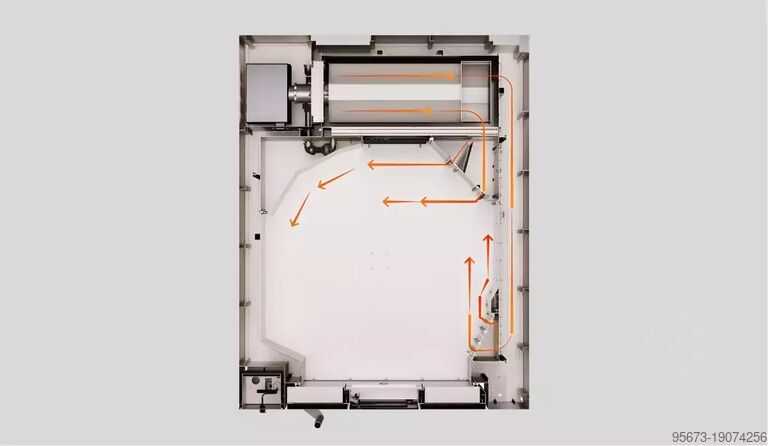

BTT (Bottom to Top) baking system – air circulates from the bottom up, creating a floor oven effect for a unique baking quality. The result: a product that leaves customers breathless!

DAF (Double Air Flow) – extremely even baking thanks to the double airflow that encompasses each product. Not available on model 4676.
Ideal for:

Cakes and pastries of low weight (e.g. 60–70 g Kaiser pastries, biscuits, sticks, tarals...)

Fast baking cycles (less than 15 minutes)

High racking (more than 18 levels)

Narrow and long trays (e.g. 46×80 cm)

OPT function – allows you to monitor the efficiency of the furnace operation in real time, helping in more rational use and energy savings

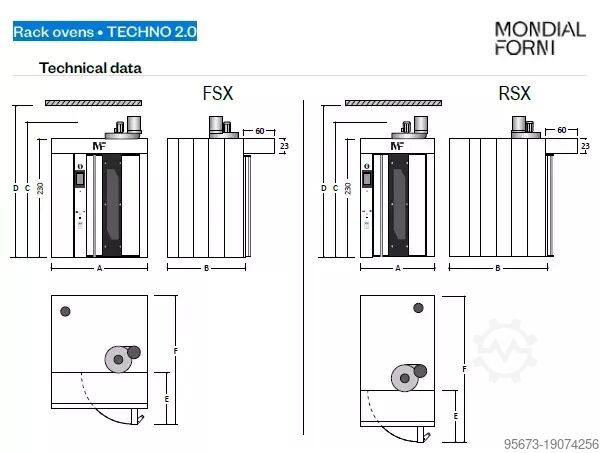

Technical characteristics:

Baking surface: 6.3 m2 (n°18T 46x76)

Oven dimensions WxDxH: 123x171x251

Minimum room height: 270 cm

Power GAS: 52 kw 44000 kcal/h

Electrical power: 1.5 kW

Weight: 1350 kg

Max. Baking temperature: 300 °C

Heating: electric or gas/light fuel oil

Main switch located on the control panel

Advanced control and management

TOUCH electronic control

"Ready to Bake" – the stove is always ready with lower consumption

"Recovery Time" – the exact time to re-readiness

Partial Load Management

Password protection of recipes

USB 2.0 for fast and secure data transfer.

Effective steam management

Kodpowhdhusfx Al Aenc
Speed Dry – faster steam ejection (70% faster), for crispier and more fragrant products

Increased steam generator (standard equipment) – higher volume and better steam distribution

Automatic steam damper

Stainless steel exhaust – 900 rpm

Energy efficiency and durability

High-performance heat exchanger and firebox (in combustible versions)

Double armored heaters (electric version)

Two-layer high-density mineral wool insulation

Rubber-silicone seal + stainless steel – long life and no steam leakage

Thermo-reflective glass – saves energy

Ergonomic vertical handle along the entire height of the door, with double locking system

Raised stove bottom – additional thermal insulation

Connection to a power limiter (only on electric models)

Construction and ergonomics:

Stainless steel front and hood

Stainless steel floor with adjustable flaps for air regulation

Rotary trolley unit with motor and mechanical overload protection

Manual lifting mechanism

Trolley access door 194.5 cm high (model 4676 off)

Door with hinges on the right side

Stainless steel access ramp, gentle inclination for easy insertion/removal of the trolley

Flat inner surface – easy to clean

Prepainted steel side panels

Access to the main controls from the front

Heavy Duty version (HD kit) – available for models 80100 and 80120

For intensive work over 8 hours a day and average temperatures above 250 °C – additional reinforcements for maximum durability.
