Cylindrical grinding machine

NAXOS-UNION W 500 500 x 2500

External Cylindrical Grinding Machine

Manufacturer: NAXOS-UNION (Germany)
Model: W500 500 x 2500 mm
Year of Overhaul: 2017

Technical Specifications:

• Max. distance between centres: 2500 mm (full length can be ground)
• Centre height: 250 mm
• Grinding wheel diameter: 600 mm
• Grinding support travel: 320 mm
• Max. workpiece weight between centres: 1500 kg
• Grinding spindle speed, stepless: 900 – 1600 RPM
• Workpiece spindle speed: 50 – 450 RPM
Knedpfx Aajxcvr Seaed
• Workpiece spindle taper: MK5 / Morse 5
• Motor power: 2.2 kW
• Approx. machine dimensions (L x W x H): 7800 x 3300 x 1750 mm
• Approx. weight: 13 tonnes

Accessories included:

• 1x full machine enclosure incl. front sliding door with safety switch
• 2x glass scales for X and Z axes incl. digital display Z300 from RSF-Elektrik, measuring system MSA

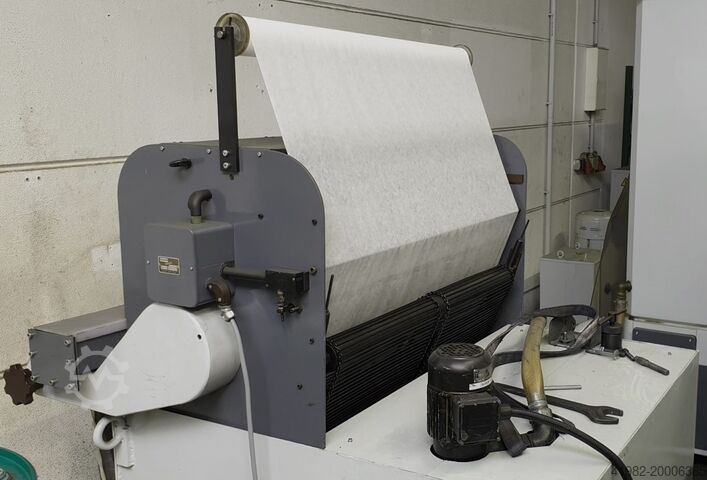

• 1x new belt filter unit by SEITZ, type PFA 100, incl. 100 l/min pump and control system
• 1x electromechanical balancing system by MPM, balancing head mounted on spindle, sensor at grinding spindle bearing
• 1x live centre, manufacturer RÖHM MK5
• 6x grinding wheel flanges
• 7x steady rests
• 14x leveling feet

Condition:
Completely overhauled in 2017, very little use since.

Negotiation basis:

Price: ex works, loaded free on truck

Collection after payment received and by prior appointment.

Disclaimer:
The seller shall not be liable for typographical or data transmission errors. Machine condition in terms of appearance, technology and wear corresponds to its age; used equipment is sold without any warranty. All prices are net.
