Metal Gringing & Edge Rounding Machine

NS Maquinas DM 1100 ZC

DM1100 ZC are metal deburring and edge rounding machines for metal sheet and parts cut by punching, shearing, laser or plasma.

Removing burrs and creating round edges using cross belts technology is possible on parts up to 1100mm width and on some as small as 50x50mm.

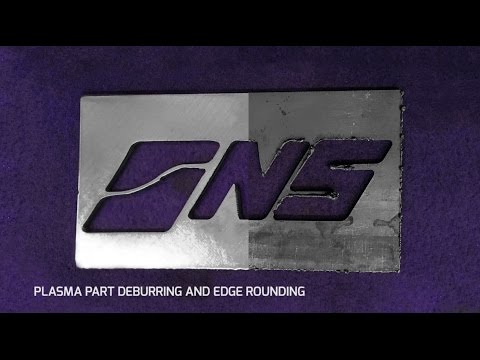

Inside and outside contours of stainless steel, steel and aluminum parts cut by laser or other thermal processes are burrs cleaned from the total surface.

Technical Details - DM1100 ZC:

Working capacity (mm) 1100x100
No. belt stations (Z) 1
No. cross belt stations (C) 1
Abrasive belt dimensions (mm) 1100x2200
Abrasive belt speed (m/s) 10
Cross belt speed (m/s) 8
Feeding speed (m/m) 0.9-13
Abrasive belt motor per head (kW) 18.5
Cross Belt Motor (kW) (2x) 3
Feeding motor (kW) 0.37
Total power (kW) 26.22
Consumption (A) 55
Ffsdped Hintofx Afzot
Dust extraction connection per head (Ø mm) (2x) 150
Dimensions (mm) 2230x2300x2250
Weight (kg) 3300
