Deburring Machine

Röder Maschinenbau Entgratanlage Verzahnung

Rated capacity 0,8 kW
voltage 230 V
current 4,0 A
total power requirement 15,8 kW
weight of the machine ca. 1,6 t
dimensions of the machine ca. 2,2 x 1,2 x 2,2 m

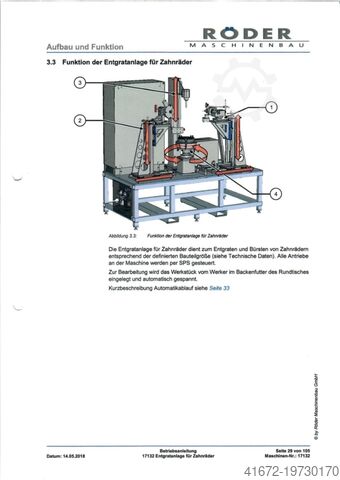

--> Deburring system for gear wheels Deburring and brushing of straight and helical teeth

--> Material and workpiece properties Material type: steel/cast steel (gear wheels with straight and helical
teeth on the outside)
--> Workpiece diameter max.: 400 mm
--> Max. workpiece height: up to 350 mm
--> Min./max. workpiece speed: 2-15 rpm

--> Milling station Travel distances:
--> X-axis: 200 mm
--> Y-axis: Rotatable 360°
--> Z-axis: 450 mm

--> Milling spindle:
--> Speed max.: 42.000 rpm (water-cooled)
Pjdpfx Aew Id D Iebgsrd
--> Collet: ER11
--> Clamping range 1-7 mm

--> Features:
Milling spindle contact pressure adjustable via pressure control valve, working
direction switchable between milling edge up/down, quick station set-up via
simple clamping, adjustment via hand wheel (X-axis) and hand wheel (Z-axis),
contact pressure can be switched off for adjustment work on the milling station.

--> Brushing station Travel distances:
--> X-axis: 200 mm + 80 mm wear adjustment
--> Z-axis: 450 mm
--> Brushing station +/-° swivelling

--> Brushing spindle:
--> Speed continuously adjustable, max. 3.000 rpm
--> Mounting: Ø 25 mm
--> Brush diameter max.: Ø 200 mm
--> Brush width min./max.: 20-30 mm

--> Features:
Brush contact pressure via pressure control valve, brush rotation direction
selectable, quick station set-up via simple clamping, manual adjustment (X-
axis) and hand wheel (Z-axis), contact pressure can be switched off for
adjustment work on the brush station, brush can be swivelled for helical gearing
