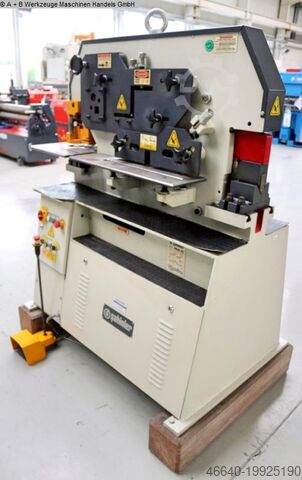

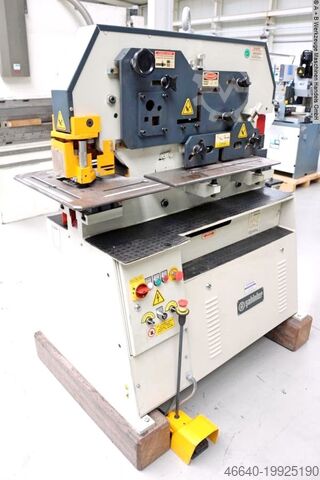

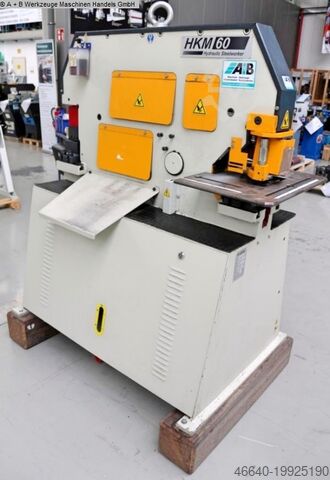

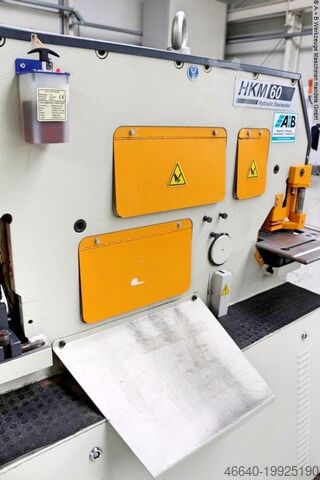

Section Steel Shear

SAHINLER HKM 60

punching pressure 60.0 t
punch diameter 28 in 15 mm
punch diameter 38 in 11 mm
adjustment of stroke 0 - 60.0 mm
round bar steel 40.0 mm
L-beam 120 x 12.0 mm
square edge steel 35.0 mm
shear: flat material 200 x 20 / 300 x 15 mm
blade length 317 mm
strokes per minute max. 25
work height max. 900 / 1130 mm
oil volume 75.0 l
Gjdpfx Aexachhsbxoil
voltage 400 V
total power requirement 5.5 kW
weight 1440 kg
dimensions 1520 x 950 x 1780 mm
From a maintenance workshop
New price for basic machine including accessories ~ €17.000
Special price upon request

- in checked conditions - machinevideo -
?v=KlpfYR1p9CI

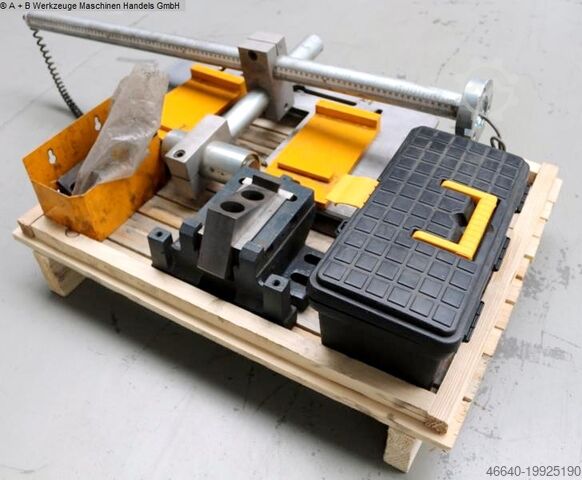

Equipment:
- Electro-hydraulic profile steel shear
- Punching station, flat steel shear, angle/profile steel shear,
. notching station * Including special equipment: bending station
- Heavy-duty and stable welded construction
- Continuously adjustable stroke
- Very compact design
- Support table at notching and punching station
- Side support/storage surfaces
- 1x adjustable electrical contact length stop
- 1x freely movable foot switch
- Emergency stop button
- Operating instructions (PDF)
