Spiral mixer for 15 - 200 kg dough

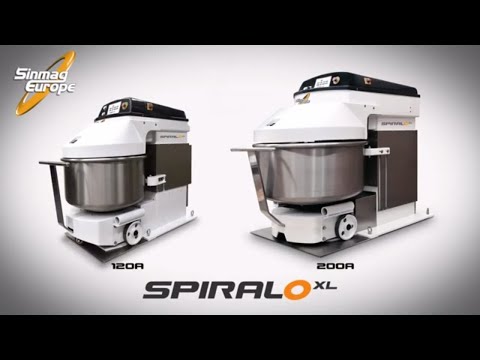

Sinmag Spiralo XL SM2-200A

New machine
24 months warranty

Advantages:
+ Solid construction, with mobile tank wagon
+ Boiler, center rod and spiral made of stainless steel
+ Powerful drive with two motors (spiral & bowl)
+ Hydraulic (vertical) lifting device for the kneading machine
+ Flour dust hood closes gently with dampers, with automatic switch-off
+ Short kneading time with excellent results
+ Switch for manual or automatic operation
+ 3 timers
+ 1 reverse gear for mixing, 2 forward gears for kneading
+ tank wagon suitable for lifting tipper attachment (see also ElevatO model)
+ Fast supply of spare parts within 1-2 working days

Program control, included in the price:
- Panel with simple program control
Itedpfjhydakjx Abnep
- up to 99 different mixing/kneading programs can be saved

Tank wagon:
- 1 tank wagon included in the price

- Additional tank wagon for SpiralO XL 200A:
+ 5.355,-- € net / wagon

Special accessories, optionally available at an extra charge:

Soft starter
- Machine can be operated with 32A instead of 63A
Surcharge: + 1.725,-- € net

Technical data:
Flour capacity: 10 - 120 kg
Dough capacity: 15 - 200 kg
Bowl volume: approx. 320 liters
Ø outer edge of bowl: 1020 mm
Motor power: 12 kW (spiral) + 1.5 kW (bowl) = 13.5 kW
rpm at 50 Hz (1st / 2nd gear): 105 / 210
Connected loads: 400V - 3Ph - 50Hz - 50 A
Fuse protection: 63A-CEE plug
Dimensions in cm: 102 x 172 x 143 (WxDxH) - machine head at the bottom
Dimensions in cm: 102 x 172 x 195 (WxDxH) - Machine head top
Height top edge of boiler rim: 85 cm
Weight of machine: approx. 1350 kg
Weight of tank wagon: approx. 250 kg / tank wagon
