Hydr. pressbrake

BOSCHERT PROFI 56 - 1400 CNC

pressure 56.0 t
chamfer lenght 1400 mm
distance between columns 1300 mm
throat 220 mm
stroke 200 mm
dayligth 485 mm
Gujdpfx Asxaanxjd Dsa
work speed 8.0 - 10.0 m/min
return speed 35.0 mm/sec
Control CNC Boschert
back stop - adjustable 0 - 370 mm
work height max. 915 mm
Cylinders : 2 Stück
voltage 3x 400 V
connected load 8.0 kVA
weight 3700 kg
range L-W-H 2320 x 1280 x 2030 mm
very good / well-maintained condition (!!)
with lots of bending tools

- in checked conditions - machine video -
?v=NrpZs6Ar0Vo

Equipment:
- NC electro-hydraulic press brake

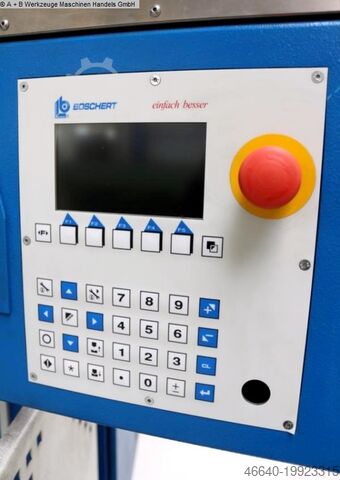

- BOSCHERT NC control unit, front
- NC electro-motorized back stop (X axis)
* with 2x manually adjustable stop fingers (R+Z axis)
- AMADA PROMECAM (SYSTEM A) upper tool holder
- AMADA PROMECAM (SYSTEM A) lower tool holder
- Handwheel with analog display for adjusting the bending angle
- lots of insert tools, including tool cabinet
- 1x working cylinder = double-acting cylinder
- upper beam made from a solid steel plate
- pressure gauge for pressing pressure (infinitely adjustable)
- 2x front support tables
- 1x freely movable foot switch
- robust machine base
- rear protective device (cover + circuit breaker)
- original operating instructions (machine + control)
