Press brake

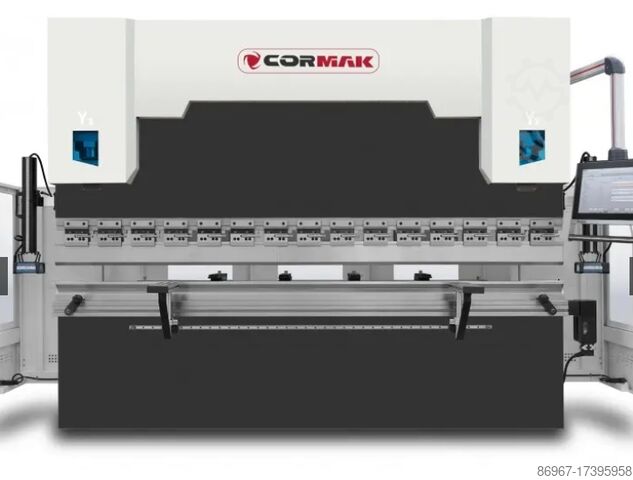

CORMAK CNC SERVO ELITE 32130 DA53TX

Cormak press brakes are advanced devices that enable precise bending of sheet metal thanks to appropriately selected punches and dies. Our offer includes models equipped with DELEM DA-53TX controllers as standard and optionally DELEM DA53T, DA-58T, DA-66T, DA69T and CYBELEC 12 controllers, which provide a wide range of functions, enabling the implementation of the most demanding bending tasks.

Main Features:

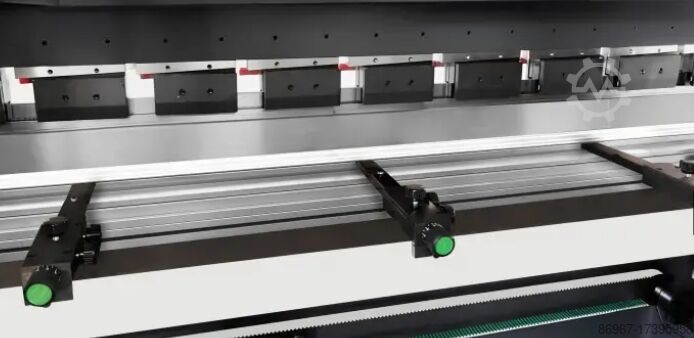

Front supports: 2 pieces on linear guides, ensuring stability during bending operations
Y1, Y2 axis adjustment: automatic
Rear stop adjustment (X axis): servo drive on encoders
R axis adjustment: servo drive on encoders

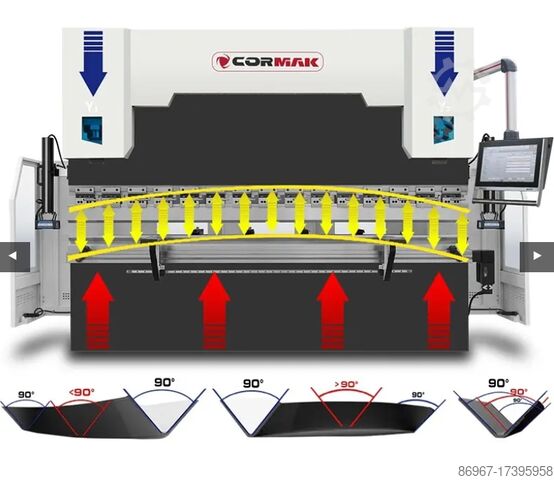

Automatic adjustment of the deflection arrow
Double-sided punch mounting: quick assembly type AMADA, enabling quick tool changes

Technical parameters
Max. thickness of bent sheet metal (S235) up to 6.0 mm
Nominal pressure 1300 kN
Maximum length of bent sheet metal 3200 mm
Depth of cut in beams (throat) 320 mm
Maximum stroke of moving beam 120 mm
Maximum opening height 390 mm
Distance between beams 2700 mm
Fpodpfx Adouw Ri Aj Ejd
Rear bumper departure 600 mm
Engine power 9.5 kW
Length 3870 mm
Width 1550 mm
Height 2460 mm
Weight 7400 kg

Additional equipment available. Please contact the seller.
