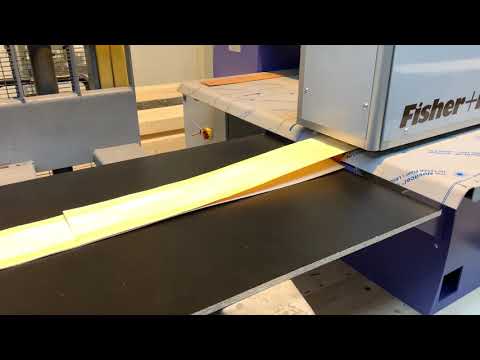

Veneer splicing machine

Fisher Rückle Impetum 1200

Veneer Splicer with Integrated Gluing System
Manufacturer: Fisher & Rückle
Model: IMPETUM 1200 (2025 Model)

Njdpexd Apmefx Abksku
Includes 4 mm Veneer Thickness Conversion Kit
For the quick and easy conversion of the IMPETUM for processing veneer thicknesses up to 4 mm. The conversion kit includes a foot pedal for manual triggering of veneer infeed.

For gluing and producing seamless lengthwise joints of parallel-joined veneer strips in a single operation, using standard urea glues.

Technical specifications:
- Veneer strips must not show extreme tension or waviness.
- Veneer strip length (with the grain): 380 - 4000 mm
- Veneer strip width (across the grain): 45 - 1200 mm
- Veneer thickness: 0.4 - 1.5 mm (up to 4 mm with conversion kit)
- Feed speed: 5 - 50 m/min
- Throughput speed (practical average value): approx. 20 - 30 m/min
- Heating zone length: 1000 mm
- Max. heating temperature: 200 °C
- Throat depth: 1200 mm
- Working height: approx. 960 mm

Glue pot capacity: 150 g
Glue type: Urea glue
Glue pot cooling: Water cooled

Features:
- Storage of machine settings for recurring orders.
- Separate electric drives for chain drive and glue application. During pauses, the chains can be stopped to prevent wear, while the glue in the pot remains in motion to prevent lump formation.
- Glue is applied only to the newly fed veneer strips, significantly enhancing joint quality.
- Robust, virtually maintenance-free stainless steel transport chains.
- Six heating zones for individual temperature settings.
- Infinitely variable assembly speeds.
- Touch panel with displays for temperature, speed, and pressure.
- Easily accessible glue pot for fast refilling or cleaning.
- Extended glue usability thanks to integrated glue pot cooling.
- Glue dosage system ensures consistent and even glue application without excess glue.

Connected load: approx. 3 kW
Compressed air: 6 bar
Compressed air consumption: 5 NL/min

Shipping dimensions: approx. 2300 x 2300 x 1850 mm
Weight: approx. 2,000 kg
