Flatbed die cutter/sheet die cutter

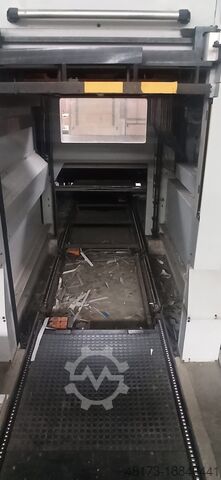

Heidelberg Dymatrix 113 CSB Pro

Heidelberg Dymatrix 113 CSB Pro – FULLY REFURBISHED

Type of machine: Embossing and die-cutting system / automatic sheet die-cutter
Machine number: 400018
Cpedpfjv T T N Hox Ag Tet

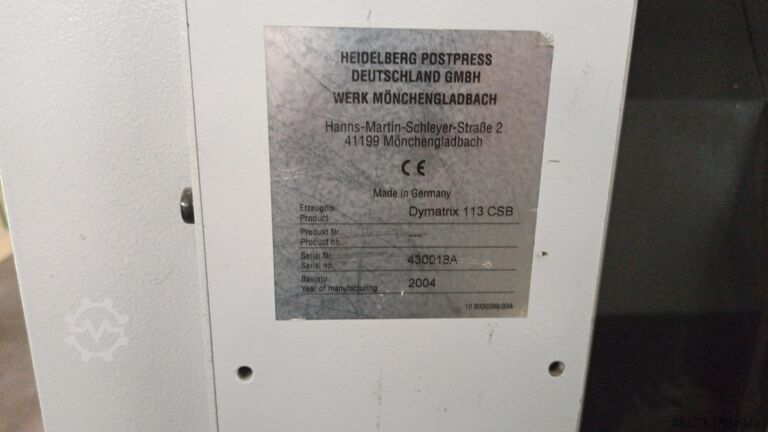

Year of manufacture: 2004

Machine specifications
Maximum strokes per hour: 9,000 sheets/h
Length without feeder: approx. 5,190 mm
Length with feeder: approx. 7,770 mm
Maximum width: approx. 2,400 mm
Maximum height: approx. 3,200 mm
Maximum height with access window open: approx. 3,930 mm
Weight without feeder: approx. 30,400 kg
Weight of feeder W4: approx. 3,000 kg
Internal closing frame width: 820 x 1,134 mm
Maximum die-cutting tool size: 816 x 1,130 mm
Maximum die-cutting area: 800 x 1,120 mm with gripper margin
Gripper margin adjustable from: Standard 11 – 17 mm with 13 mm wood before 1st knife
Option 8 – 14 mm with 10 mm wood before 1st knife
Rule height: 23.8 mm
Maximum pile height (feeder, incl. pallet): 2,000 mm
Maximum pile height (delivery, incl. pallet): 1,700 mm
Maximum pile weight (feeder): 1,000 kg
Maximum pile weight (delivery): 1,000 kg
Maximum rest pile height (feeder): 450 mm
Maximum rest pile weight (feeder): 450 kg
Maximum auxiliary pile height (delivery): 200 mm
Maximum auxiliary pile weight (delivery): 200 kg

Pallet sizes
Feeder: max. 800 x 1,200 mm (EURO pallet)
Delivery: max. 800 x 1,200 mm (EURO pallet)
Maximum pallet height: 170 mm

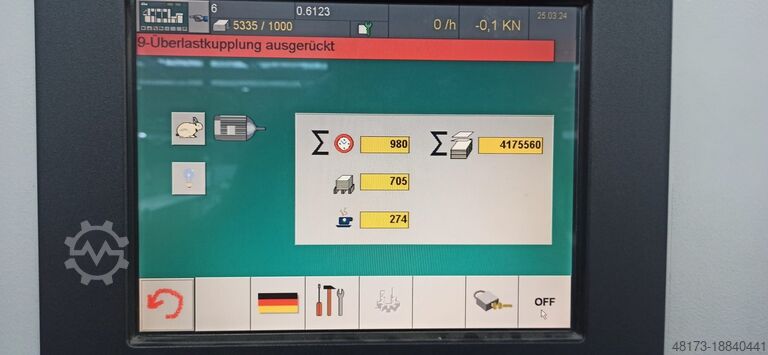

Drive and electrical supply
The machine is powered by a frequency-controlled motor via a flywheel. Between the flywheel and the machine, a pneumatic clutch with spring-loaded brake is installed, which is used to engage and disengage the machine. The motor runs continuously. The control cabinet placed at the machine contains, except for a few devices, all control components for the die-cutter and feeder. Command and indicator devices are located on the machine itself, distributed across the control panels as required.

Control cabinet
Equipment: Power supply, main switch, fuses, motor protection, PLC control
Electrical rating: 3 phase, 400 V AC, 50 Hz, 63 A
Control voltage: 24 V DC; 230 V AC; 50 Hz
Dimensions: 2,800 x 600 x 2,200 mm

The machine is in excellent condition.
A test run can be arranged at any time.
Various accessories are included.
Patent-protected chain guide rails from QTM have been retrofitted.

Price: On request
