Press brake

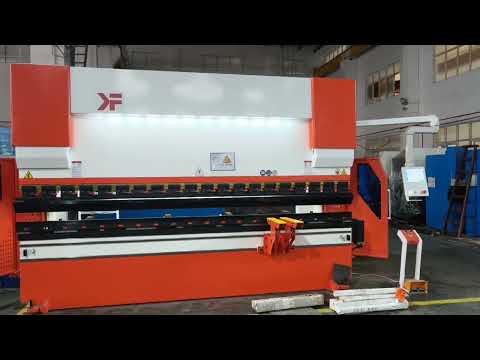

Jinan Kafe CNC Machinery Co., Ltd. KHP100T3200

Mechanical Structure
1. Frame: Integral thick steel plate welded structure with shot blasting stress relief, high torsion resistance, stable long-term precision; processed by large CNC boring & milling machine.
2. Sliding ram: Connected to cylinders via spherical joints; self-lubricating rectangular guide rails; fitted with 0.005mm grating scales on both sides for synchronous closed-loop detection.
3. Worktable: Equipped with motor-driven integral mechanical crowning wedge to compensate deflection.
4. Backgauge: Servo-driven ball screw with dual linear guides, modular multi-axis expandable design, fast and high-precision positioning.
5. Tooling & accessories: Quick clamping upper dies, dual V lower dies for fast mold change; adjustable front support stand with horizontal & vertical movement.
6. Anti-deviation structure: Dual-side grating scales eliminate throat deformation interference, strong anti-unbalanced load capacity.
7. Cantilever operation box conforming to ergonomics for easy operation.

Hydraulic System
1. Integrated PHUCHIN hydraulic manifold, compact layout and zero leakage.
2. Original SKF/PARKER sealing rings for long service life.
3. Special oil tank with high cleanliness; oil level & temperature visual display; built-in overload protection.

Electrical & Control System
1. Main SCHNEIDER electrical components, anti-interference and safe.
2. Movable foot switch with emergency stop; neat heat-dissipating electrical cabinet wiring.
3. DA53T CNC Controller (4+1 axes standard, expandable to 6+1 axes):
- 15-inch color LED touch screen, multi-language support, mouse compatible
- Storage: 999 workpieces, 20 upper molds + 20 lower molds, 100 programs with 25 steps each
- Multiple ports: USB, RS232, Ethernet; supports robot linkage & automatic production line connection
- Real-time mold graphics, programmable step speed, dual-machine linkage function

Core Component Brands
Hydraulic system: PHUCHIN/Bosch Rexroth; Oil pump: Hi-Tech/SUNNY; Grating scale: Italy GIVI; Seals: SKF/PARKER; Electric parts: Schneider; Main motor: Siemens/Lido

Other Advantages
- Comply with national JB & GB standards for press brakes; Noise ≤82dB(A)
- 12-month warranty; 8-hour response & 24-hour on-site after-sales service

二、.Technical Parameters
1. Rated bending force: 1000KN
2. Max bending length: 3200mm; Column distance: 2700mm
Gedpfxjwfwkwj Aliebp
3. Ram stroke: 200mm; Max opening height: 450mm; Throat depth: 400mm
4. Speed: Rapid traverse 180mm/s, working speed 0–10mm/s, return speed 170mm/s
5. Main motor power: 7.5KW; Power supply: 380V/50Hz three-phase
6. Precision Index
- Y1/Y2 ram positioning accuracy: ±0.02mm; Repeat positioning: ±0.01mm
- Workpiece angle tolerance: ±30' full length
- X-axis backgauge repeat accuracy ≤±0.01mm; R-axis ≤±0.02mm
7. Environment requirements: Temp -5℃ ~ 40℃, humidity 55–85%RH, altitude ≤1000m
8. Standard axes: Y1,Y2,X,R,V (4+1 axes)
