Cutting-drilling line Kaltenbach HDM 143

Kaltenbach HDM1431

Beam cutting, drilling and marking line

DISC SAW

Brand: KALTENBACH

Model: HDM 1431 / T13 / SP-CNC

Year 2002

Serial number: 122.400

Weight without accessories: 10,980kh

- Disc saw with downward cut.

- Geared saw unit, drive system and saw blade on wear-resistant swivel bearing.

- Heavy saw gear with pinions in oil bath, with inclined teeth, hardened and sharp.

- Hydraulic advancement of the saw blade, adjustable according to the table, very fast recoil.

- Hydraulic horizontal clamping device. Rear clamping jaw with long-stroke clamping cylinder and automatic recoil limitation.

- Vertical clamping block with self-adjusting push plate.

- Oblique cutting device to adjust the angle from 45° to the left to 35° to the right.

- Material sensor to automatically switch from rapid advance to work advance.

- Hydraulically elevating feed roller for optimum material transport on the saw table.

- Economical lubrication by means of a micro-dosing installation, especially suitable for sawing profiles.

- Chip collector installed on the machine bench.

Specs:

- Cutting disc housing: 100x4x30x250mm

- Cutting disc diameter: 1,430mm

- Cutting width: 9.5mm

- Cutting speed: 10 to 20m/min.

Bwsdpehzbipjfx Af Deg
- Saw advance speed: 0-400mm/min.

- Fast reverse speed: 2000mm/min.

- Total power: 25KW

- Working height: 640mm

Cutting capacities:

90º cut

- Angle steel: 250mm

- Steel in U: 400mm

- Double T-beam: 600mm

- Wide flanged beam: 1008x302mm

- Special wing beams: 1000x450mm

Cut to degrees:

IPBv beam

- 75º: 1008x302mm

- 60º: 910x302mm

- 45º: 716x304mm

- 40º: 716x304mm

- 35º: 478X307mm

IPBs beam

- 75º: 1008x402mm

- 45º: 524x357mm

IPE beam

- 45º: 600x220mm

DRILLING UNIT

Brand: Kaltenbach

Model: KDX1215

Serial number: 122.401

Work capabilities:

- Angular steel (minimum - maximum): 80x65x10mm - 250x250x28mm

- Steel in U (minimum - maximum): 80x45mm - 400x110mm

- Double T beam (minimum - maximum): 80x46mm - 600x220mm

- Wide flanged beam (minimum - maximum): 100x100mm - 1,008x302mm

- Extra wide wings beam: 1,200x500mm

Drilling units: 3

- Vertical (Y axis) 1 pc.

- Horizontal (Z and W axes) 2ud.

Drilling diameters: 8 - 40mm

RPM: 150 - 1100

Fast forward - Fast reverse: 3,850mm/min. - 8,000mm/min.

Drilling spindle feed rate: 0-500mm/min.

Fast spindle positioning tool: 15,000mm/min.

Automatic tool changer: 5 u. in each drilling unit. 3x5 u. = 15 total

Total power: 45KW

MARKING UNIT


FEEDING:

26 METERS OF ENTRY WITH BEAM FEEDER + 6 SIDE ARMS FOR BEAM ENTRY IN PARALLEL TO THE ROLLER TRACKS

30 METERS OF ROLLER TRACKS WITH OUTPUT + 6 SIDE ARMS

4 SIDE ARM FOR SMALL PIECES

THE GREAT MAJORITY OF ROLLERS ARE MOTORIZED

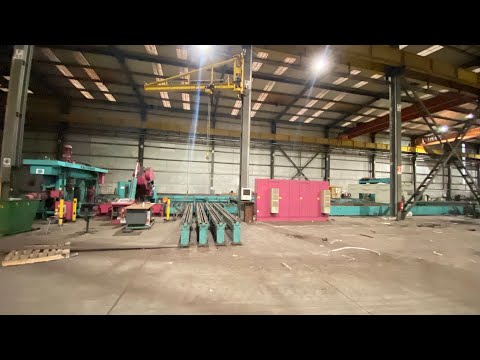

It occupies approximately 60 linear meters between input and output power.

*Request machine installation plans.
