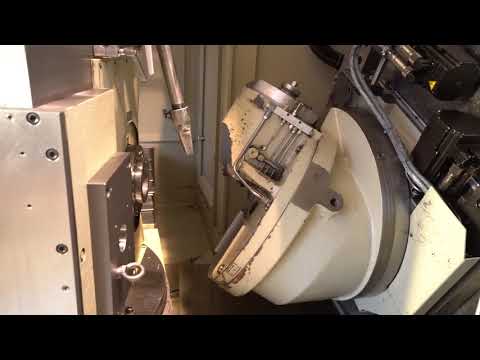

Bevel Gear Generator - Spiral

KLINGELNBERG KNC 25 P

max. wheel diameter 275 mm
gear width 150 mm
max. module 6
min. module 1,5
Gjdpfx Aeul Etdobxjil
total power requirement 62 kW
weight of the machine ca. 12 t
dimensions of the machine ca. 4,7x4,4x2,45 m
max. wheel diameter mm
gear width mm
max. module 6
min. module 1.5
max. workpiece diameter 275 mm
tooth width max. 5.5 mm
spiral angle 0 - 60 °
number of teeth 5 - 120
transmission ratio min. 1:1
transmission ratio max. 1:10
milling drive motor 20 kW
workpiece drive 14.5 kW
total power requirement 62 kVA
weight of the machine ca. 12 t
dimensions of the machine ca. 4,7 x 4,387 x 2,45 m



Tool spindle (D-axis)
- workpiece spindle speed (infinitely) 60 to 350 [...]

Tool positioning axis (E-axis)
- swivel range 0 to 360°
- swivel speed max. 19.5°/s

Workpiece spindle (B-axis)
- mounting diameter outer cone (1: 4) 140 mm
- standard internal cone (1:20) 99.218 mm
- workpiece spindle speed max. 300 [...]
- workpiece spindle passage 90 mm

Workpiece positioning axis (Y-axis)
- travel 870 mm
- speed max. 4.5 m/min

Roller rotation axis (A-axis)
- swivel range 315°
- swivel speed max. 40°/s

Axis intersection (Z-axis)
- travel range max. +/- 50 mm
- speed max. 0.657 m/min

Workpiece swivel axis (C-axis)
- swivel range -8.5 to 98°
- swivel speed max. 21.5 °/s

Milling depth axis (X-axis)
- travel from -25 to 640 mm
- max. speed 6 m/min

Machinen distance (V-axis)
- travel 150 mm
- speed max. 1.6 m/min
