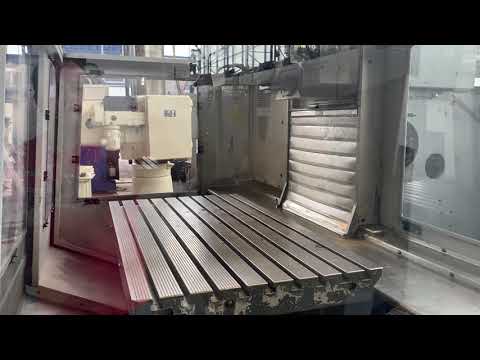

Universal Milling Machine

MAHO MH 800 W

Technical details:

x-travel: 800 mm
y-travel: 550 mm
z-travel: 500 mm
spindle taper ISO: SK 40
control: Philips 532
quill stroke vertical: 80 mm
turning speed range: 0-600 und 600-4000 steples U/min
feed:: 1 - 3000 mm/min.
rapid traverse: 6 m/min
table surface area: 1100 x 600 mm
table feed: 1 - 3000 /stufenlos mm/min
switched on hours: 82194 h
total power requirement: 9,6 (12 kVA) kW
weight approx.: 4200 kg
dimension machine xH: 2,9 x 2,2 x 2,5 m

The machine is located in the technical department.
further technical data:
- vertical adjustment table (z-axis) 500mm
- Headstock throat depth: min./max.: 200 / 750 mm

Equipment:
-coolant tank with pump
-Manual control unit (hand operated)
-linear measuring system Heidenhain


*
