Measuring Machine

MITUTOYO Contracer CV 3200 H8

x-travel 200 mm
y-travel 60 mm
z-travel 500 mm
speed of measurment 0,02 - 20 mm/s
0 X = 0,05 µm
0 Z = 1 µm mg
traversing speed X = 0 - 80 mm/s
base plate 600 x 450 mm
weight of the machine ca. 164 kg
dimensions of the machine ca. 766 x 482 x 1166 mm

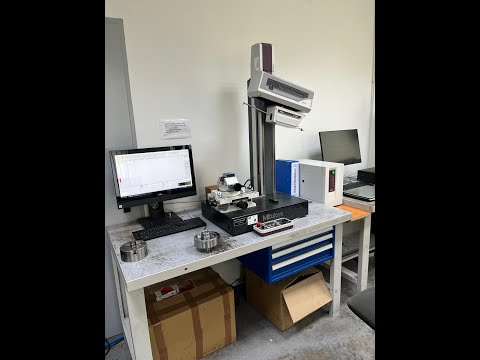

Contracer contour measuring device, high-performance measuring system for
automatic series measurement with motorized Z-column on granite plate.
Straightness guidance of the X-axis via ceramic and automatic raising and
lowering of the probe tip. Measuring range Z1 - axis = 60 mm. Table, screen and
PC. The software can measure, evaluate and document.
