Willemin Macodel W 408 MT

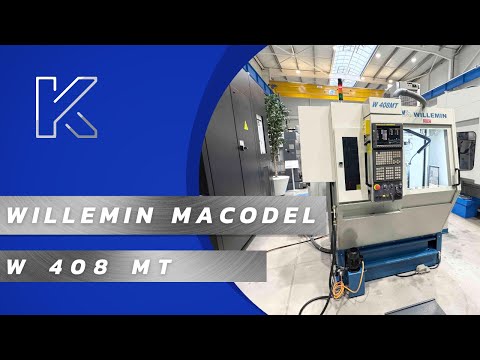

WILLEMIN MACODEL W408 MT


TECHNICAL CHARACTERISTICS :

Year : 2007
CNC control : FANUC 16i-MB
Number of axes : 5
Stroke X axis : 250 [mm]
Stroke Y axis : 200 [mm]
Stroke Z axis : 300 [mm]
Traversing feeds X, Y and Z axes : 30000 [mm/min]
Max. bar diameter in turning spindle : 32 [mm]
Main spindle max. speed : 6000 [rpm]
Main spindle max. power : 3.7 [kW]
Angular C axis stroke : 360 [°]
B axis swivelling stroke : 115 [°]
Spindle type : HSK-E40
Min. spindle speed : 500 [rpm]
Max. spindle speed : 30000 [rpm]
Spindle power : 10 [kW]
Tool changer magazin number of stations : 48
Max. tool lenght : 95 [mm]
Hjdpfx Aswu Ruhob Aenh
Max. tool diameter : 63 [mm]
Lubrication tank capacity : 80 [l]
Collant pump flow rate : 40 [l/min]
Rated current : 25 [A]
Supply voltage : 400 [V]
Weight : 1700 [Kg]


EQUIPMENT INCLUDED :

x1 0-90° pivoting backworking unit (6th side machining)
x1 backworking vice
x1 RENISHAW TS27R tool probe
x1 RENISHAW NC4 TX laser system for tool setting and tool breakage detection
x68 type F35 turning collets
x9 HSK-40E milling/turning attachments
x1 IEMCA BOSS 332 E bar feeder
x1 spindle chiller
x1 cutting fluid chiller
x1 ELBARON mist extractor
x1 3-colour status lamp
x1 CO2 automatic fire extinguishing system (to be checked by the purchaser with a competent body)
x1 set of technical manuals



Price on request, loading on truck included.

Possibility of shipping Worldwide.
