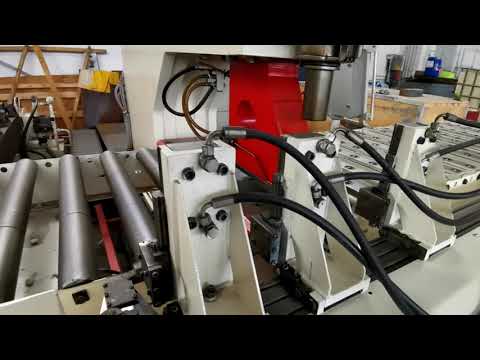

Plate Drilling Machine

MUHR & BENDER (MUBEA) Mubea-Matic PI 200x100-1D

Technical details:

workpiece thickness - max.: 80 mm
workpiece thickness min.: 5 mm
plate size without being adjusted: 2000x1000 mm
size of plate min.: 100x100 mm
longitudinal travel: 2800 mm
cross travel: 1000 mm
control: CNC Mubea Matic100
hole diameter: min/max:10/40 mm
tool taper: Kegel/cone/cono DIN 6327
bore spindle stroke: max. 150 mm
positioning accuracy: +/- 0,5 mm
spindle speeds:: 112-180-224-280-355-560 U/min
traversing speed: 80 m/min
feed length: max. 150 mm
rapid traverse: 8 m/min
Nsdpfju Id Rusx Akrjla
work table:: L:2500;B:950 mm
workpiece weight: 750 kg
deburring device max.: d=40 mm
work height max.: 1050 mm
arm gripping device: 4 Stück/ pcs
opening of gripping pliers min/max.: Typ I: 5/45 mm
opening of gripping pliers min/max.: Typ II: 45/85 mm
air-pressure connection: 6 bar
total power requirement: 30 kw
Weight approx.: 5,5 t
space requirements approx. LxWxH: 5,0 x 5,5 x 2,7 (je nach Aufstellung) m

- plate size with beeing adjusted also 1000x4000 mm possible
- with roller conveyor 2x1000mm
- material supporting table complete with supporting elements, guidance rail for guidance and transportation of the positioning wagons , cooling of the drill via air pressure
- control for 2 axis positioning x-axis 80m/min and y-axis 30m/min,
- memory capacity approx. 10.000 programs
- position wagon/carriage, 2 material support table, material standard gauge railway,
- electric cabinet, control panel, hydr. aggregate

accessories:
- 1 position trolley, 2 material support tables, material web,
control panel, hydraulic unit, deburring device

Equipment:
- 2 pieces drill sleeves, roller track 1800x1000mm and roller tracks 2x1000mm

Machine is not under power and ready for transport.

*
