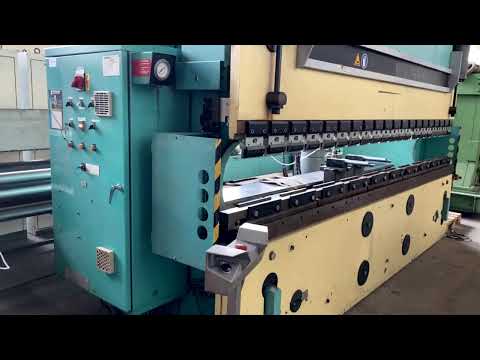

Hydr. pressbrake

Promecam STPC 200-40

Technical details:

pressure: 200 t
chamfer lenght: 4000 mm
Bedpfxou Icc Ae Aarolh
distance between columns: 3530 mm
control for program: DNC 7000
max. stroke: 220 / min: 200 mm
throat: 320 mm
ajustment speed: 70 - 80 mm/sec
working feed: 10 mm/sec
return speed: 49 mm/sec
back gauge: 700mm motorisch
table-size: L x B: 4110 x 180 mm
work height max.: inkl. Tischverlängerung mm
interface: RS 232
connection voltage: 380 V
total power requirement: 15 kW
weight of the machine ca.: gesamt: 17,0 t
machine dimensions LxWxH: 4,6 x 1,6 x 3,3 m

incl. 2 pieces table extensions
rear support 700mm travel motorized and 2 pieces support blocks with travel 1500mm motorized right/left
operation via control panel swiveling and 2x foot operation
Hydraulics: max. pressure 318bar; oil filling approx. 170 liters; pump capacity 19.3 l/min.
Control DNC 7000, graphic display, PC software

equipment:
Cutting zone lighting
stroke counter

div. Tools optional

*
